Samtec TSW-101-07-G-S Single Pin PCB Headers 9 PCS
Full Description & History
Genuine Samtec TSW-101-07-G-S single-position through-hole PCB pin headers, supplied as a lot of 9 pieces from original Mouser Electronics distributor stock.
These compact, single-row male header connectors feature a 2.54 mm (0.100 inch) pitch and gold-plated contacts. Designed for through-hole PCB installation, they provide convenient connection points for electronic assemblies, test fixtures, jumper connections, and board-level repair applications.
The individual pin configuration is useful for circuit modifications, prototyping, replacement of damaged header contacts, and restoration of compatible electronic equipment.
TECHNICAL SPECIFICATIONS:
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible Radios / Boards
Suitable for compatible electronic circuit boards requiring a single-position, straight, through-hole male pin header with 2.54 mm pitch. Applications include PCB repair, electronics restoration, prototyping, test equipment, control boards, instrumentation, and jumper connections. Verify contact dimensions, mating connector compatibility, PCB hole diameter, and mechanical clearance before installation.
RF Boneyard Bench Notes
RF Boneyard Bench Notes

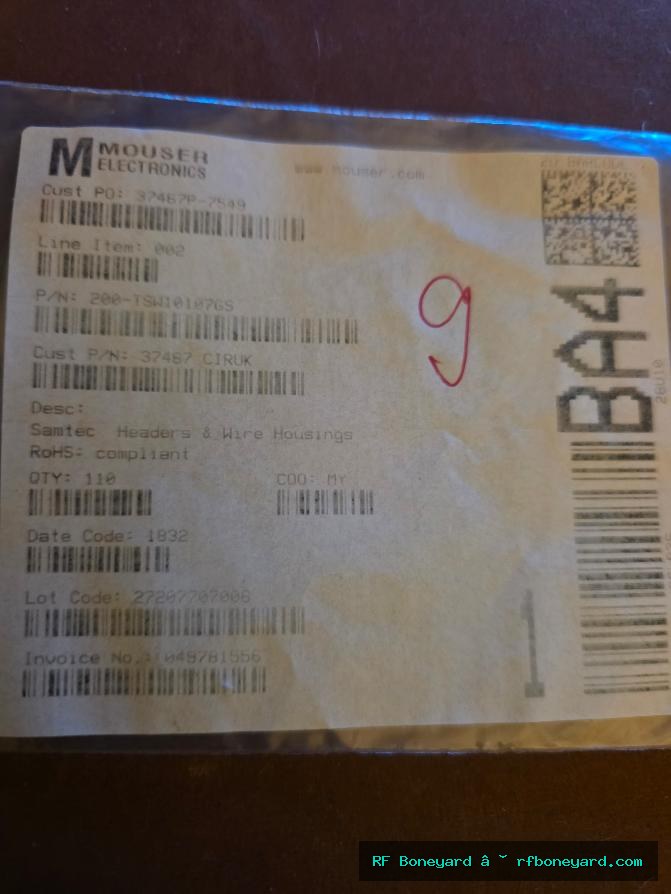

Original Mouser Electronics distributor-labeled Samtec stock. Nine components visually inspected from the supplied lot photograph. No electrical continuity testing or soldering performed. No previous installation reported.
