33 PCS Texas Instruments SN74AUP1G06DCKT Low-Power Open-Drain Inverter SC70-5

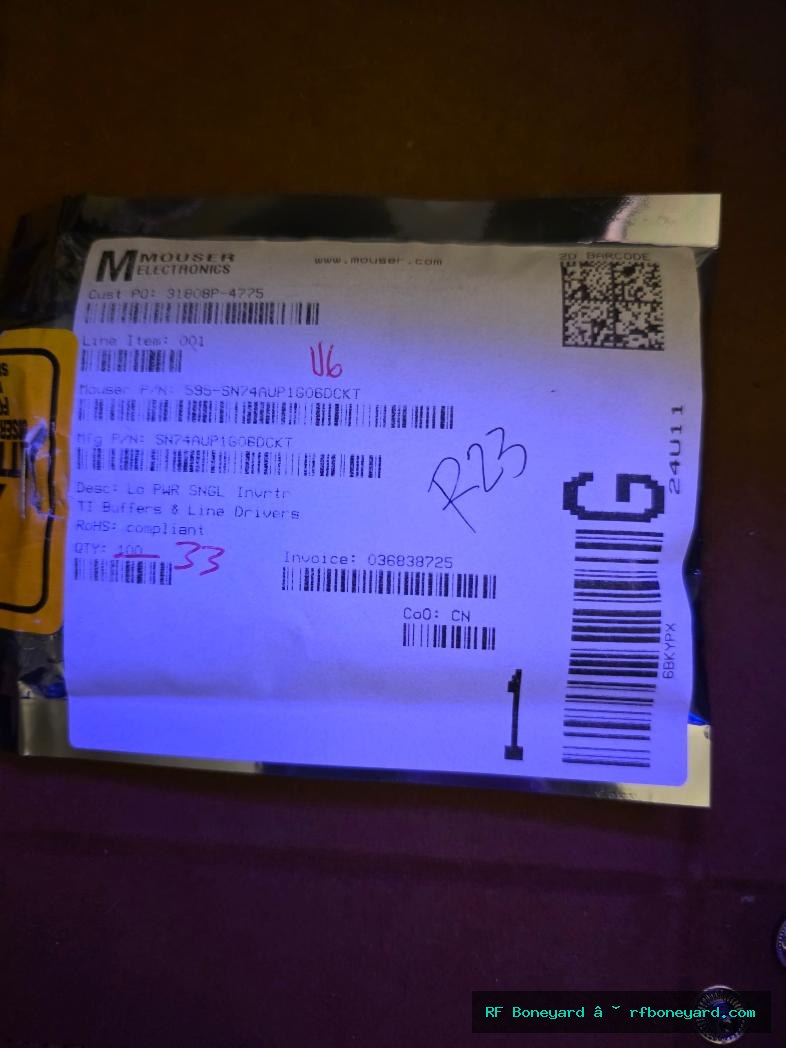

Original Mouser Electronics distributor packet containing 33 PCS Texas Instruments SN74AUP1G06 low-power single inverter logic ICs with open-drain output.

The devices are supplied as the SN74AUP1G06DCKT orderable configuration in the compact SC70-5 surface-mount package. The DCKT designation identifies the specific package and supply configuration; the core device part number is SN74AUP1G06.

This logic device is intended for ultra-low-power digital applications and provides a single inverter with open-drain output. It is useful for signal inversion, control lines, logic interfacing, embedded electronics, communications equipment, industrial electronics, and compact digital circuit designs.

This original distributor packet contains 33 PCS and is sold as one complete package.

Lifecycle: ACTIVE.

HISTORICAL BACKGROUND:
Texas Instruments developed the AUP logic family for electronic systems requiring very low power consumption while maintaining dependable digital switching performance.

AUP stands for Advanced Ultra-Low-Power. This family became useful as electronics increasingly moved toward battery-powered, portable, embedded, communications, industrial, and high-density surface-mount designs.

The SN74AUP1G06 performs one fundamental digital function: a single logic inversion with an open-drain output.

Unlike a conventional push-pull output, an open-drain output actively pulls the signal low while an external pull-up circuit establishes the high state. This arrangement is useful for shared control lines, logic interfacing, wired logic, signal conditioning, and other applications where flexible output behavior is required.

Single-gate logic devices represented an important development from older multi-gate DIP logic ICs. Designers could place one small logic function exactly where it was needed rather than installing a larger IC containing several unused gates.

The compact SC70-5 package allows this function to be used in densely populated circuit boards found in embedded systems, communications hardware, portable electronics, industrial controls, instrumentation, computers, and specialized electronic assemblies.

Original distributor packets such as this provide useful manufacturer and supply-chain traceability for repair benches, engineering stock, prototyping, and small-production work.
