Signetics 047066 02-0012-01 Vintage 24-Pin DIP IC 1978 Singapore NOS

Vintage Signetics 047066 integrated circuit in a 24-pin DIP through-hole package, additionally marked 02-0012-01 and SINGAPORE. The device carries the classic Signetics logo and the marking 7834E. The 7834 portion is consistent with semiconductor date coding indicating production during the 34th week of 1978.

This appears to be a specialized OEM, customer-specific, or house-marked Signetics device rather than a commonly documented standard catalog IC. The exact internal function and original equipment application have not been positively identified from surviving public documentation. It is particularly suitable for exact-number vintage equipment restoration, legacy board repair, semiconductor collecting, or research where the original markings match the required component.

LIFECYCLE STATUS: OBSOLETE

HISTORICAL BACKGROUND:
Signetics was founded in Silicon Valley in 1961 and became an important early American integrated-circuit manufacturer. The company produced digital, analog, memory, timing, and specialized semiconductor devices during the rapid expansion of integrated electronics in the 1960s and 1970s. Signetics became especially well known for devices such as the 555 timer and numerous logic and analog IC families.

Philips acquired Signetics in 1975, although the Signetics name and distinctive stylized S logo continued to appear on semiconductor products afterward. This device therefore dates from the Philips-owned Signetics era.

The 7834 marking is consistent with production during the 34th week of 1978, placing this physical component in the late-1970s generation of electronics. During this period, 24-pin DIP integrated circuits were widely used in industrial controls, communications equipment, computers, instrumentation, consumer electronics, and specialized OEM systems.

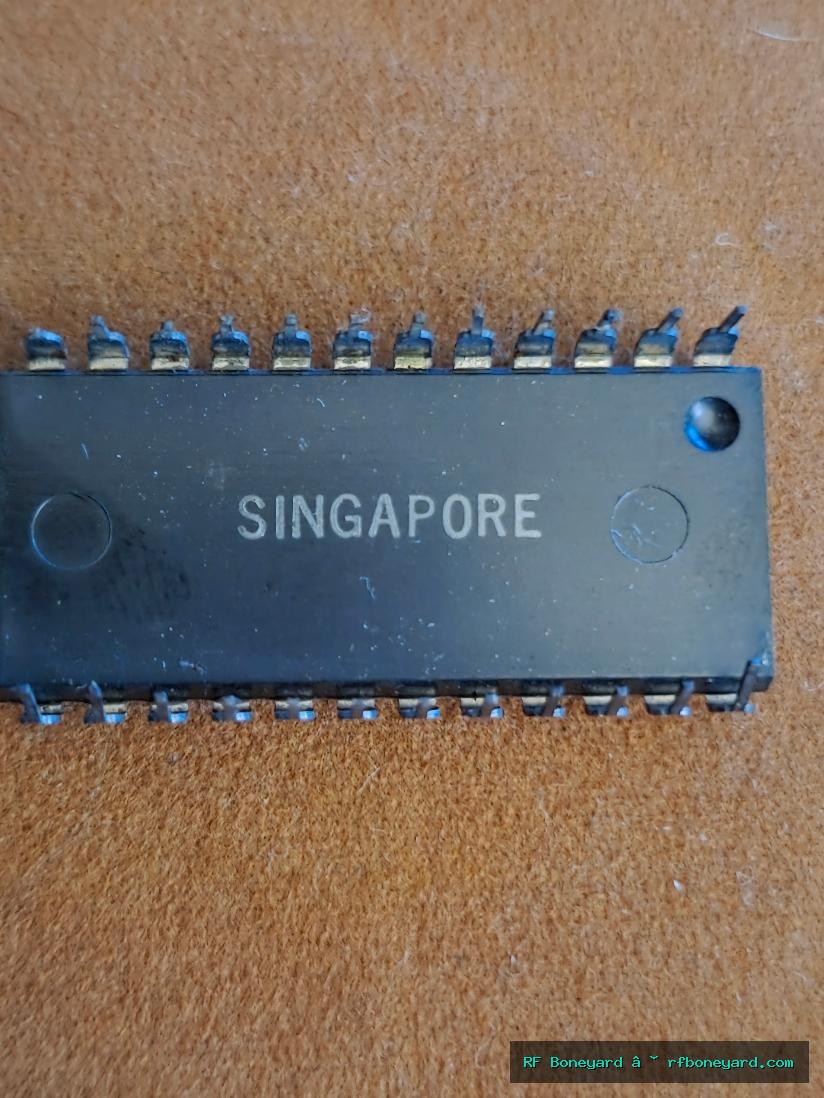

The reverse of this IC is molded SINGAPORE, documenting its manufacturing or assembly origin. Singapore became an important semiconductor manufacturing and assembly center during the 1970s as major electronics companies expanded production throughout Southeast Asia.

OEM and house-marked ICs from this period can be particularly difficult to identify today because many customer-specific numbers never appeared in ordinary semiconductor databooks. For restoration work, preserving all original markings can therefore be important. This device is marked 047066, 02-0012-01, 7834E, and SINGAPORE.
