Yageo 470 ohm 1% 1/16W 0402 Thick Film Resistor 80 PCS PACK
Full Description & History

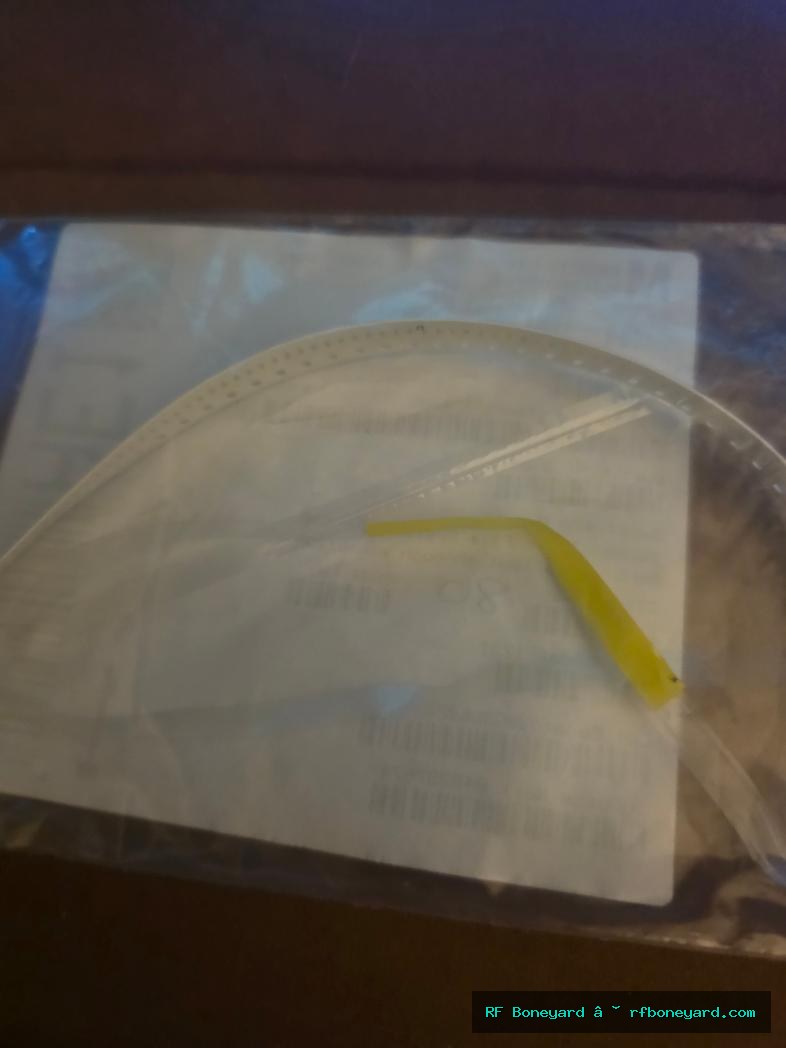

Original Mouser Electronics distributor package containing 80 Yageo RC0402FR-07470RL thick film surface-mount resistors.
Each resistor is rated at 470 ohm with ±1% tolerance and 1/16W power handling in the compact 0402 / 1005 metric SMD package.
This listing is for ONE complete package containing 80 resistors. Quantity 1 purchases the entire 80-piece package.
The original Mouser distributor label identifies Yageo manufacturer part number RC0402FR-07470RL and Mouser part number 603-RC0402FR-07470RL. The package is marked country of origin Taiwan and date code 1731.
These components are new, unused, never installed, and retained in original distributor packaging.
HISTORICAL BACKGROUND:
Yageo is a major manufacturer of passive electronic components including resistors, capacitors, and related surface-mount devices used throughout consumer, industrial, communications, automotive, and general electronic equipment.
The RC0402 series is a compact thick film chip resistor family designed for high-density surface-mount PCB assembly. The 0402 package provides a very small footprint while maintaining reliable resistance performance for signal, bias, feedback, pull-up, pull-down, and general circuit applications.
A 470 ohm resistance value is widely used for current limiting, transistor biasing, LED circuits, logic interfaces, feedback networks, and general-purpose electronic design and repair.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible Radios / Boards
Suitable for circuits requiring:
Resistance: 470 ohm
Tolerance: ±1%
Power Rating: 1/16W / 62.5mW
Voltage Rating: 50V
Package: 0402
Metric Package: 1005
Technology: Thick Film
Temperature Coefficient: ±100 ppm/°C
Mounting: SMD / SMT
Operating Temperature: -55°C to +155°C
Suitable for PCB repair, prototyping, digital electronics, analog circuits, communications equipment, control circuitry, LED current limiting, bias networks, feedback circuits, and general electronic assembly.
RF Boneyard Bench Notes
RF Boneyard Bench Notes
New unused NOS components retained in original Mouser Electronics distributor packaging.
Package label visually verified:
Yageo RC0402FR-07470RL
Mouser P/N: 603-RC0402FR-07470RL
Resistance: 470 ohm
Tolerance: ±1%
Power Rating: 1/16W
Package: 0402 / 1005 Metric
Technology: Thick Film
RoHS: Compliant through exemption
Country of Origin: Taiwan
Date Code: 1731
Lot Code: 3BG2G60281
Package Quantity: 80 PCS
Individual resistors have not been electrically tested because they are new, unused NOS components retained in original distributor packaging.
