Open Datasheet / PDFSanyo Denki San Ace MC 109X1512H2116 12V Cooling Fan / Heatsink Bracket Assembly
$23.99

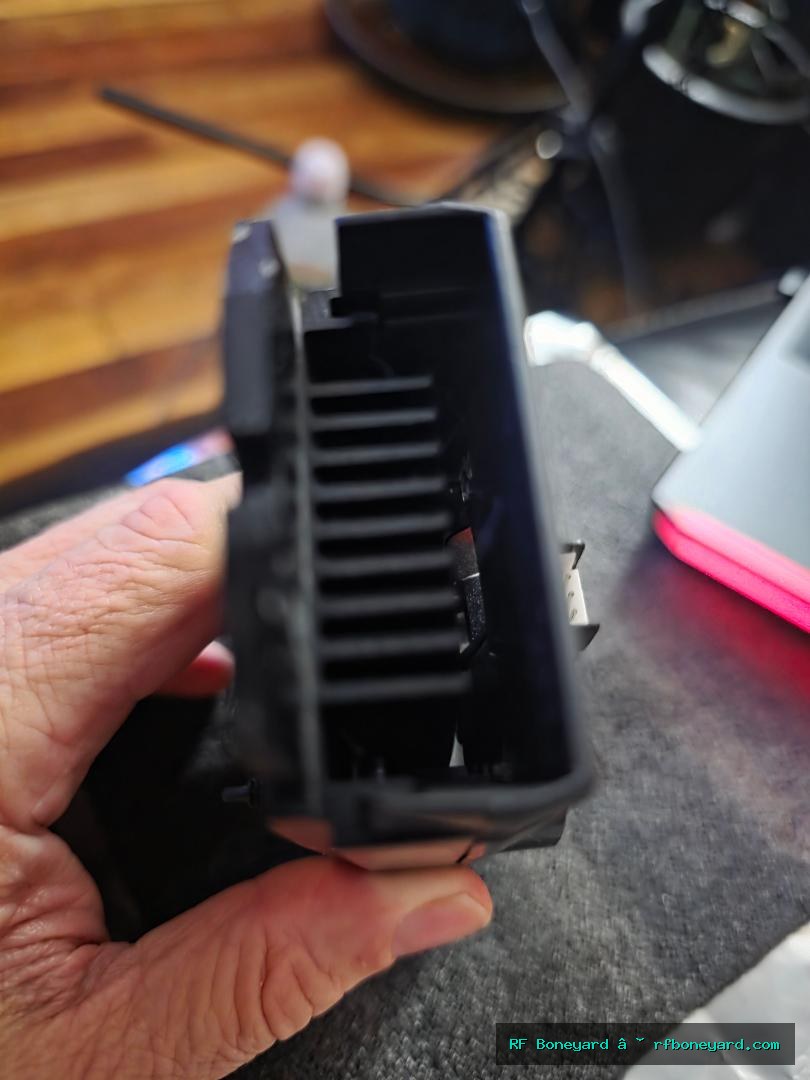

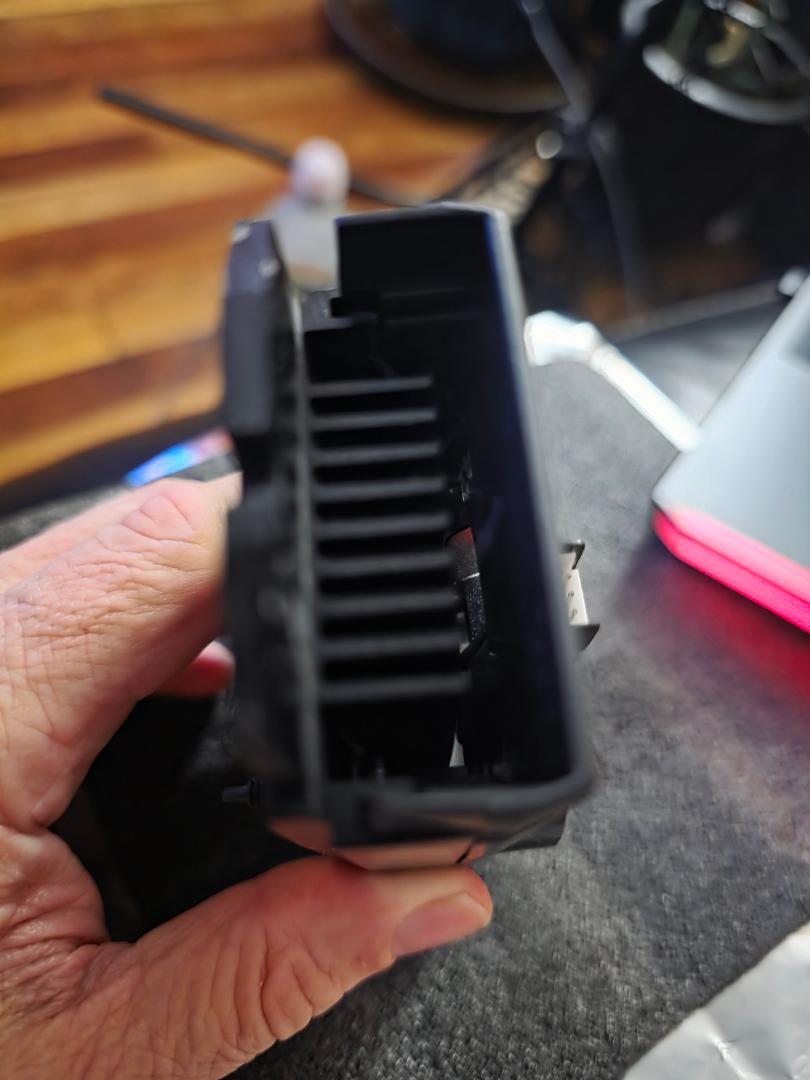

This is a Sanyo Denki San Ace MC 109X1512H2116 cooling fan / heatsink bracket assembly featuring an integrated 12V DC fan mounted within a black plastic heatsink-style airflow housing or bracket.
San Ace fans are commonly used in higher-quality electronic equipment where compact airflow, reliability, and thermal management matter. This assembly may be useful for technicians, restorers, and builders working on radio equipment, RF gear, power supplies, amplifiers, test equipment, or other electronics where a compact cooling fan and ducted heatsink bracket are needed.

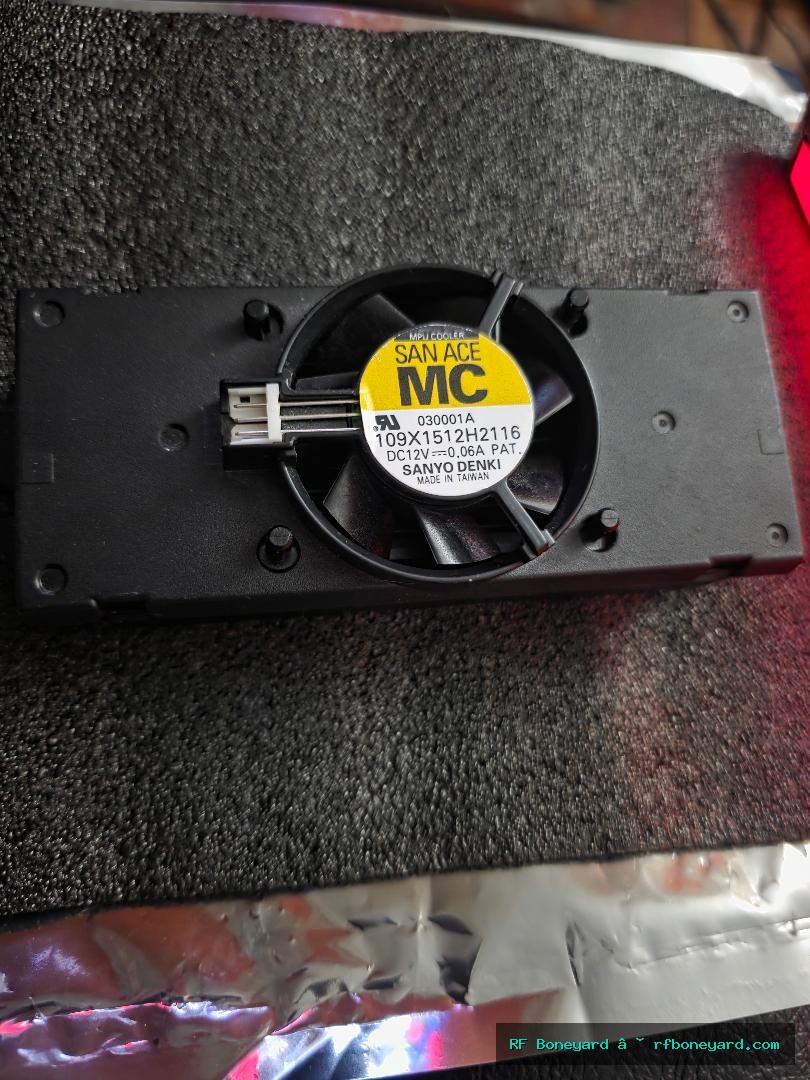

The unit is marked:
SANYO DENKI San Ace MC
109X1512H2116
DC 12V — 0.06A
Made in Taiwan
This is being sold as a donor-pull / bench-stock cooling assembly. Buyer must verify dimensions, connector type, airflow direction, mounting points, voltage, current rating, and compatibility with their equipment before installation.
