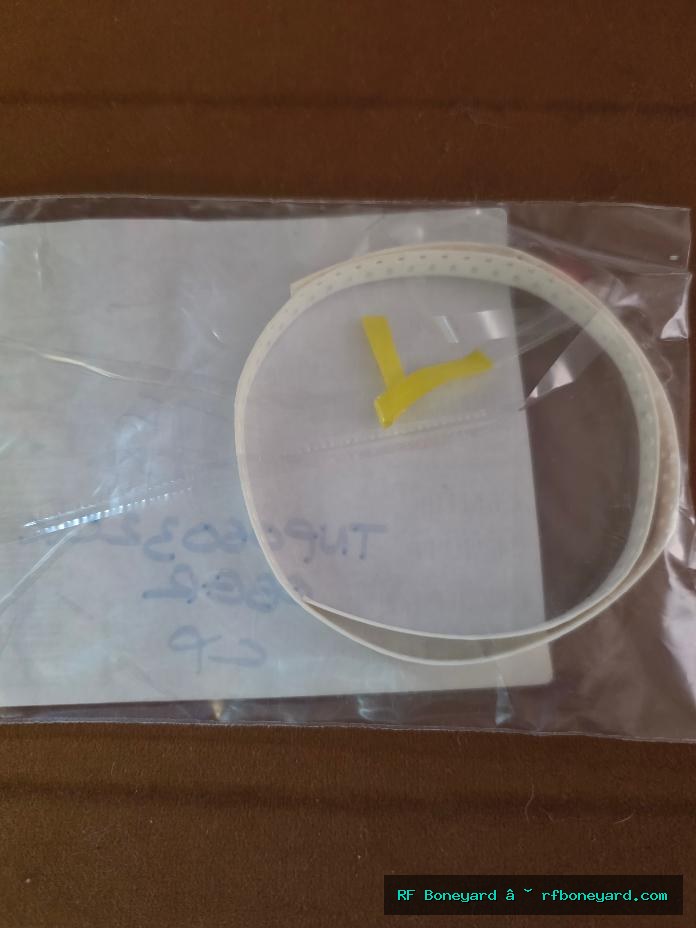

YAGEO RT0603BRD0720KL 20K Ohm 0.1% 25PPM 0603 Thin Film Precision Resistors 75pcs

Resistors • SKU RFB00546

$6.95

75-piece pack of genuine YAGEO RT0603BRD0720KL high-precision thin-film surface-mount resistors from original Mouser Electronics distributor stock. These precision resistors provide a 20K ohm resistance value with a tight ±0.1% tolerance and low ±25ppm/°C temperature coefficient in the compact industry-standard 0603 / 1608 metric package.

Specifications:
Resistance: 20K ohm
Tolerance: ±0.1%
Temperature Coefficient: ±25ppm/°C
Power Rating: 0.1W / 1/10W
Maximum Working Voltage: 75V
Technology: Thin Film
Package: 0603 / 1608 Metric
Dimensions: approximately 1.60mm x 0.80mm
Maximum Height: approximately 0.55mm
Operating Temperature: -55°C to +155°C
Mounting: Surface Mount / SMD / SMT
Series: YAGEO RT
Terminations: 2
RoHS: Compliant
Country of Origin: Taiwan
Pack Size: 75 pieces

The RT0603BRD0720KL is a precision resistor intended for circuitry where tighter resistance accuracy and improved temperature stability are required compared with ordinary general-purpose thick-film chip resistors. Typical applications include precision analog circuitry, measurement equipment, instrumentation, voltage-divider networks, feedback circuits, converters, communications equipment, server electronics, control boards and repair of existing surface-mount assemblies.

The exact RT0603BRD0720KL remains an ACTIVE production component. Current authorized-distributor listings show continuing factory supply and substantial inventory, so this part should not be represented as obsolete or discontinued. DigiKey specifies the device as a 20K ohm, ±0.1%, 0.1W thin-film 0603 resistor with a ±25ppm/°C temperature coefficient, while YAGEO's current RT-series documentation continues to include the RT0603 precision-resistor family.

HISTORICAL BACKGROUND:

Thin-film chip resistors were developed for applications requiring greater resistance precision, long-term stability and lower temperature drift than conventional thick-film surface-mount resistors. As compact electronic equipment increasingly adopted automated SMD assembly, precision resistor families such as YAGEO's RT series allowed designers to obtain laboratory-grade resistance tolerances in the same small footprints used for mass-produced electronics.

YAGEO's RT family is specifically designed as a high-precision, high-stability thin-film chip resistor series. The family has been available for many years and has expanded to include increasingly tight tolerances and multiple surface-mount package sizes. The RT0603BRD0720KL combines the common 0603 footprint with a 20K ohm value, ±0.1% resistance tolerance and ±25ppm/°C temperature coefficient, making it particularly useful in precision feedback, sensing, calibration and analog signal paths where ordinary 1% resistors may not provide adequate accuracy.

Because the part remains active, this NOS distributor stock is best suited for technicians, experimenters and production users needing genuine older stock of the exact YAGEO manufacturer number, as well as for repair work where retaining the original component specification and footprint is preferred.
