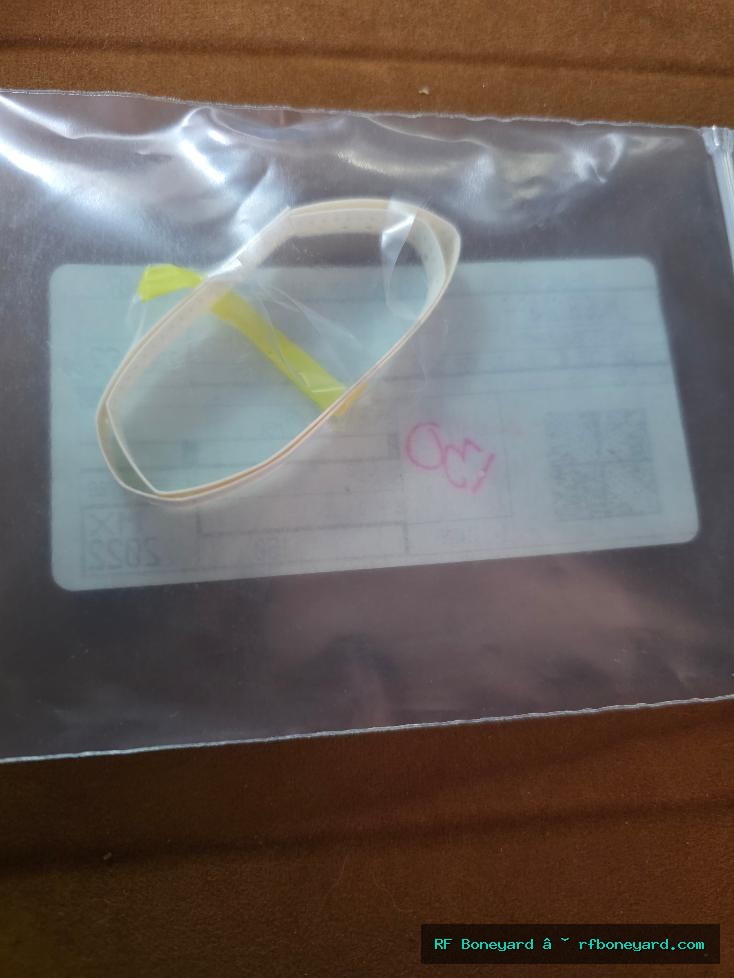

Taiyo Yuden LMK063BJ104KP-F 0.1uF 10V X5R 0201 Ceramic Capacitors - 130 Piece Lot
$3.95
Lot of 130 Taiyo Yuden LMK063BJ104KP-F multilayer ceramic chip capacitors. These compact MLCCs provide 0.1uF capacitance at a 10V rating with ±10% tolerance and X5R dielectric in the extremely small 0201 EIA package size, also identified as 0603 metric. They are suitable for bypassing, decoupling, filtering, power-rail stabilization, compact digital electronics, communications equipment, embedded electronics, portable devices, and general surface-mount repair work.
Electrical specifications include 0.1uF / 100nF capacitance, 10V rated voltage, ±10% tolerance, X5R temperature characteristic, and an operating temperature range of approximately -55°C to +85°C. Physical size is approximately 0.6mm x 0.3mm, making these components useful where board space is extremely limited. Designed for reflow soldering.
HISTORICAL BACKGROUND:
Taiyo Yuden has long been a major Japanese manufacturer of ceramic capacitors and other high-reliability passive electronic components. The LMK063 family became widely used as electronic designs moved toward increasingly dense surface-mount construction and very small 0201 components.
The exact LMK063BJ104KP-F designation is now treated by Taiyo Yuden as a previous/renamed part number rather than an obsolete capacitor technology. Taiyo Yuden identifies MSASL063SB5104KFNA01 as the preferred newer part-number designation for general-equipment applications with essentially the same 0.1uF, 10V, X5R and 0201 characteristics. The older LMK063BJ104KP-F remains useful for repair work, existing bills of material, legacy production documentation, and applications requiring the exact historical part number.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
General-purpose 0201 surface-mount applications requiring a 0.1uF / 100nF, 10V, ±10%, X5R ceramic capacitor. Suitable for digital logic decoupling, power-supply bypassing, RF and communications electronics, microcontroller boards, portable electronics, industrial controls, test equipment, computer electronics and compact PCB repair. Replacement suitability should be verified for capacitance, voltage rating, dielectric, package dimensions and circuit requirements.
RF Boneyard Bench Notes
Lot count verified at 130 pieces. Components supplied as unused distributor stock. Individual capacitance measurements were not performed due to the small 0201 package size.
