Mostek MK3881P Z80-PIO Parallel I/O Controller Ceramic Gold-Pin DIP-40 Vintage – 1 Piece

ICs / Integrated Circuits • SKU RFB00519

$49.00

Genuine vintage Mostek MK3881P Z80-PIO Parallel Input/Output Controller in the desirable 40-pin ceramic DIP package with gold-finished leads and metallized lid. THIS LISTING AND PRICE ARE FOR ONE (1) IC. Two matching pieces are currently available; quantity purchased determines the number of individual ICs supplied.

LIFECYCLE STATUS: OBSOLETE / DISCONTINUED. The original Mostek MK3881P is a legacy Z80-family peripheral IC that is no longer manufactured by Mostek. Original ceramic Mostek examples are now primarily encountered as vintage surplus, collector stock, or restoration components for period digital equipment.

The MK3881P is the Mostek implementation of the Z80-PIO programmable parallel input/output controller. It provides two programmable parallel I/O ports and was designed to interface a Z80 microprocessor system with external hardware such as keyboards, switches, printers, displays, control circuitry, peripheral interfaces, relays, and other digital equipment. The device also supports interrupt-driven operation, making it useful in more sophisticated microcomputer and control applications.

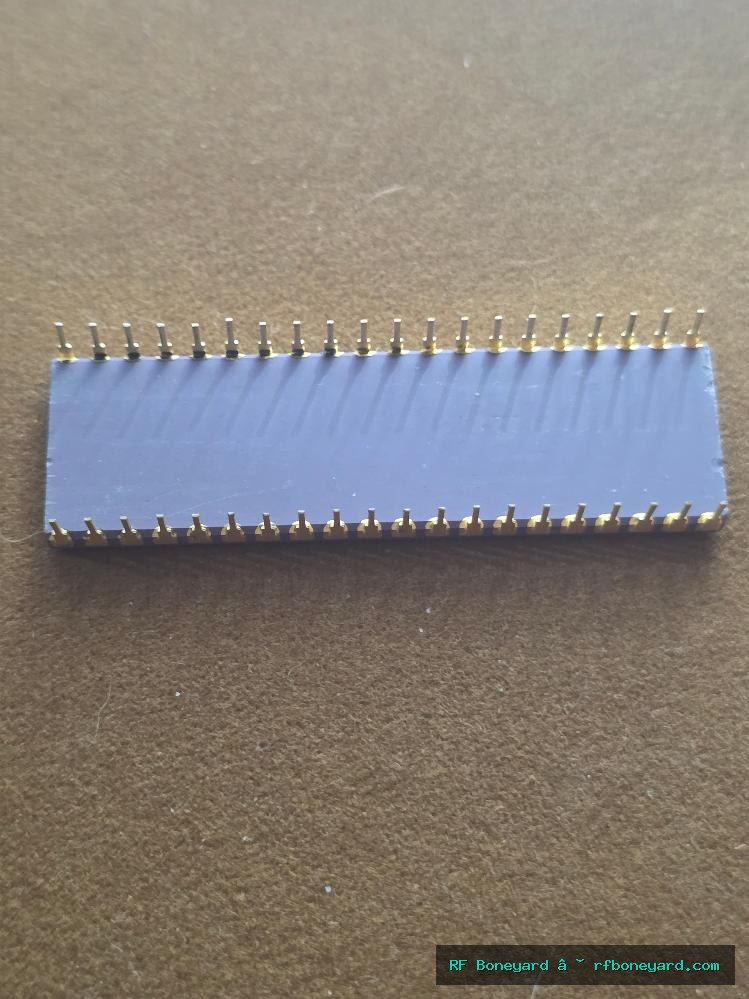

This is the ceramic-package MK3881P version rather than a later plastic-package implementation. Its large purple ceramic body, gold-finished leads, gold-colored lid and original Mostek markings make it especially desirable for period-correct restoration and vintage semiconductor collections. The gold-colored construction represents plating and metallization used in the package and leads; the component is not being represented as solid gold.

HISTORICAL BACKGROUND:

Mostek was an important American semiconductor manufacturer during the development of early microprocessor and memory technology. The company became an authorized second-source producer of Zilog’s Z80 microprocessor family and manufactured compatible processors and peripheral devices under Mostek MK38xx part numbers.

The MK3881 Z80-PIO was one of the major support devices used around the Z80 processor. Rather than performing the main computation itself, the PIO allowed the CPU to communicate with external hardware through programmable parallel ports. These controllers became useful in early microcomputers, CP/M systems, industrial controllers, laboratory equipment, communications hardware, terminals, automation equipment, and other Z80-based systems.

Z80 processors became extremely important in the late-1970s and 1980s computing era and were also widely used throughout vintage arcade and game hardware. The MK3881P can therefore be of interest to arcade-board restorers working on Z80-based systems where the original schematic or board design specifically calls for a Z80-PIO or compatible parallel I/O controller. It should NOT be assumed to fit every Z80 arcade board, because many game boards used different support logic or custom circuitry. Service documentation and board-level requirements must always be verified.

The photographed RF Boneyard devices carry original Mostek MK3881P, MALAYSIA and Z80-PIO markings along with production code 7839. That marking is retained as part of the component’s provenance and identification. RF Boneyard does not assign a guaranteed manufacturing date from the production code without verified Mostek factory documentation.

The survival of original Mostek ceramic Z80-family peripherals is increasingly significant to vintage-computer and electronics restoration because period-correct components allow historically important equipment to be repaired without replacing every original semiconductor with a modern substitute.
