NIC Components NMC0603NPO220J50TRPF 22pF 50V C0G NP0 0603 Ceramic Capacitors 85pcs
$9.95
85-piece pack of genuine NIC Components NMC0603NPO220J50TRPF multilayer ceramic chip capacitors.
This RF Boneyard listing is for ONE sellable 85-piece package.
The NMC0603NPO220J50TRPF is a 22pF surface-mount multilayer ceramic capacitor using stable C0G / NP0 dielectric material. It is rated for 50VDC operation with ±5% capacitance tolerance in the compact 0603 / 1608 metric package.
C0G / NP0 ceramic capacitors are valued for excellent capacitance stability and low dielectric loss, making this type especially useful in RF circuits, oscillators, filters, tuning networks, timing circuits, communications equipment and precision electronic applications.
Specifications:
• Capacitance: 22pF
• Rated Voltage: 50VDC
• Tolerance: ±5%
• Dielectric: C0G / NP0
• Package: 0603
• Metric Size: 1608
• Technology: Multilayer Ceramic Capacitor / MLCC
• Mounting: Surface Mount / SMD / SMT
• Series: NIC Components NMC
• Operating Temperature: -55°C to +125°C
• RoHS Compliant
• Pack Size: 85 pieces
• RF Boneyard Inventory Quantity: 1 sellable package
HISTORICAL:
NIC Components has supplied passive electronic components for commercial, industrial and communications applications, with its NMC family covering a broad range of surface-mount multilayer ceramic capacitors.
C0G / NP0 dielectric ceramic capacitors have long been important in radio, RF and precision electronic circuits because their capacitance remains highly stable compared with many higher-capacitance ceramic dielectric types. Small-value capacitors such as this 22pF device are commonly encountered in oscillator networks, RF coupling and filtering, tuning sections, impedance networks and other circuits where predictable capacitance is important.
The compact 0603 surface-mount format reflects the industry's transition toward increasingly dense PCB construction while retaining the electrical stability associated with C0G / NP0 ceramic technology.

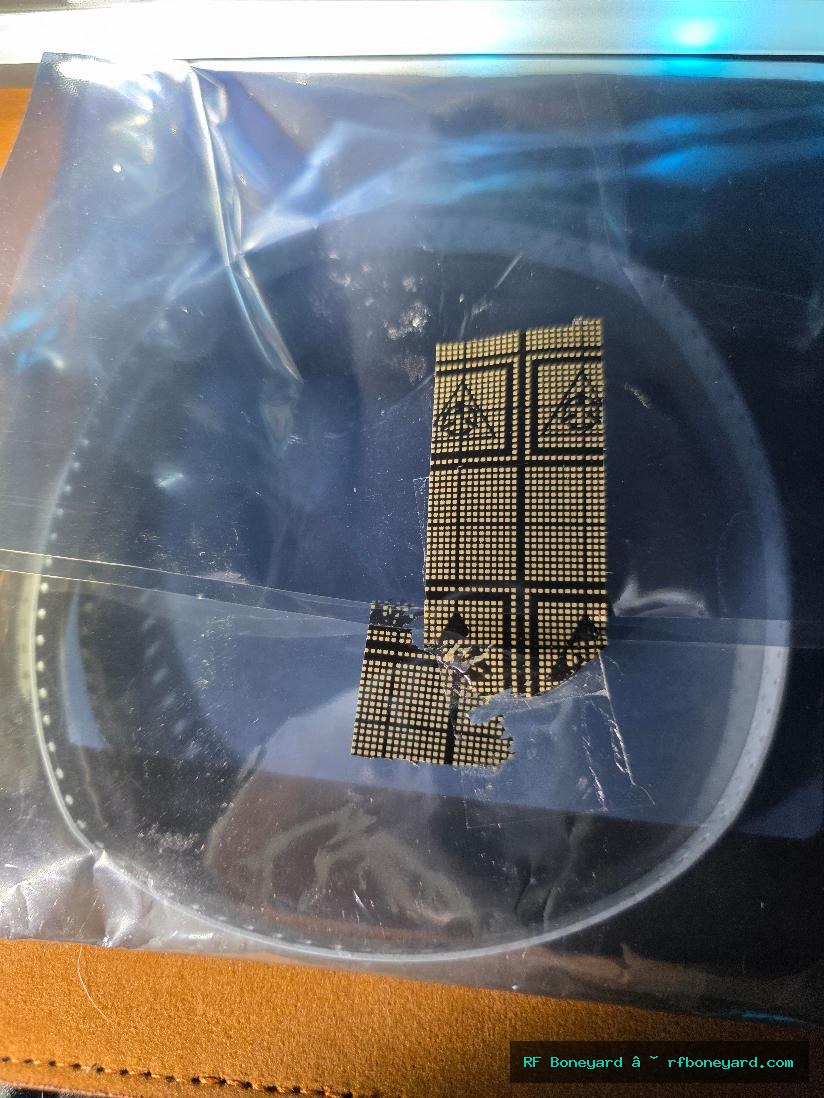

Supplied as genuine NOS NIC Components stock from original distributor packaging as shown.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Suitable for electronic equipment and PCB designs requiring a 22pF ±5% C0G / NP0 ceramic capacitor rated for 50VDC in a 0603 / 1608 metric surface-mount footprint.
Useful for radio restoration, RF circuits, communications equipment, oscillator circuits, tuning networks, filtering, test equipment, instrumentation, PCB repair, prototyping and general electronic servicing.
Always verify capacitance, voltage rating, dielectric, package size and circuit requirements before substitution.
RF Boneyard Bench Notes
NOS components visually inspected in original distributor packaging/tape stock. Components have not been individually electrically tested.
