Panasonic ERJ-2GE0R00X 0 Ohm Jumper 1/10W 0402 SMD Resistors 50pcs
$4.95
New old stock Panasonic ERJ-2GE0R00X zero-ohm thick-film surface-mount jumper resistors supplied from original Mouser Electronics distributor inventory. This listing is for 50 pieces in 0402 / 1005 metric tape packaging.
The ERJ-2GE0R00X functions as a zero-ohm jumper for PCB routing, configuration links, option selection, circuit bridging, production test paths, and other applications where a machine-placeable conductive link is required. Its standard 0402 package allows it to be installed with conventional automated SMD assembly equipment alongside other chip resistors.
Specifications:
Resistance: 0 ohm jumper
Package: 0402 / 1005 metric
Power Rating: 1/10W / 100mW
Technology: Thick Film
Mounting: SMD / SMT
Dimensions: Approximately 1.0mm x 0.5mm
Operating Temperature: -55°C to +155°C
Voltage Rating: 50V
AEC-Q200 qualified
RoHS compliant
Original packaging: Mouser Electronics distributor stock
Current RF Boneyard quantity: 50 pieces
Date Code: 1812
Country of Origin shown on distributor label: CN
HISTORICAL:
Panasonic traces its origins to 1918, when Konosuke Matsushita established the business that eventually developed into one of Japan's best-known electronics manufacturers. Over the following century, Panasonic expanded far beyond consumer products into the manufacture of industrial and electronic components used in communications equipment, automotive systems, instrumentation, control electronics, and countless other electronic assemblies.
The ERJ family represents Panasonic's long involvement in miniature surface-mount resistor technology. As electronic manufacturing shifted away from through-hole construction toward automated high-density PCB assembly, chip components such as the ERJ series became fundamental building blocks of modern electronics.
A zero-ohm resistor is electrically intended to act as a jumper rather than provide meaningful resistance. Packaging that jumper in the same standardized SMD form as conventional resistors allows manufacturers to place conductive links using normal pick-and-place machinery instead of installing separate wire jumpers. These parts are frequently used to cross PCB traces, select circuit options, simplify board revisions, establish configuration links, or provide convenient production and service connection points.

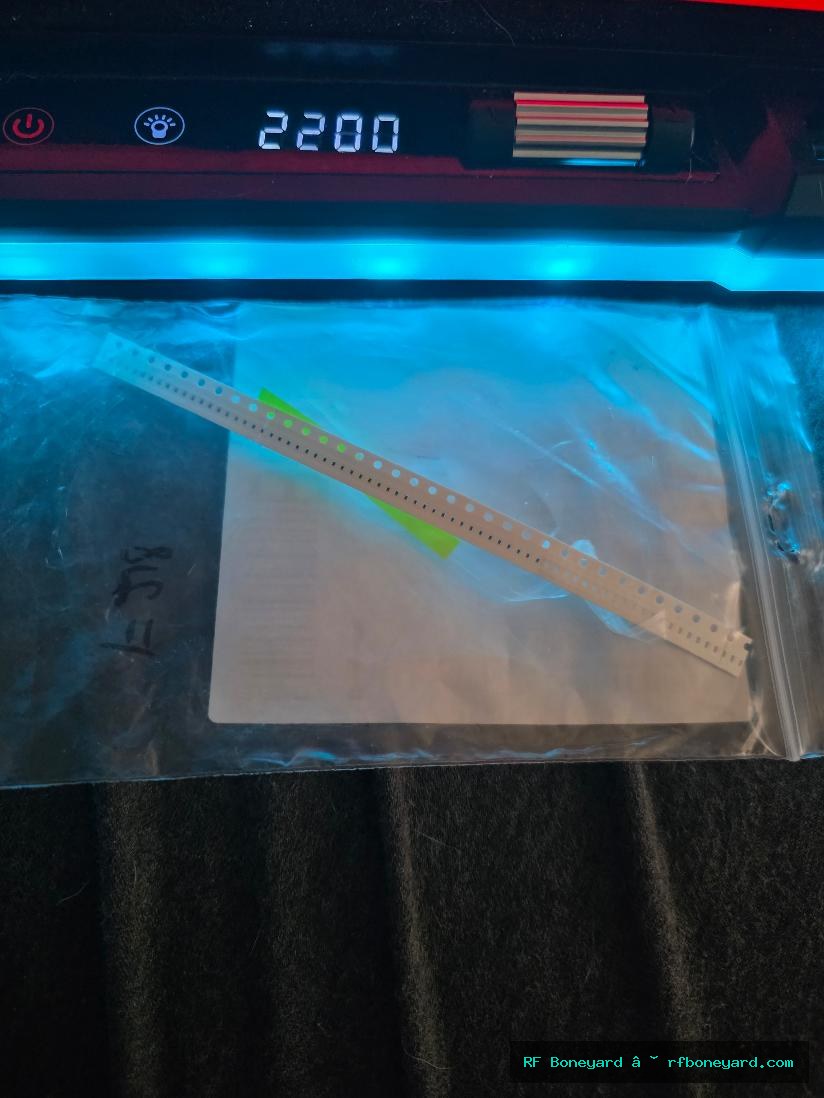

This RF Boneyard stock retains its original Mouser Electronics distributor labeling, including Panasonic identification, date code 1812, and an original labeled quantity of 200 pieces. The current lot contains 50 pieces.
The ERJ-2GE0R00X remains an active-production
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Suitable for electronic assemblies requiring a 0-ohm 0402 / 1005 metric SMD jumper within the electrical and dimensional ratings of the Panasonic ERJ-2G series. Useful for PCB repair, configuration links, trace bridging, prototyping, automotive electronics, RF support circuits, communications equipment, instrumentation, industrial controls, and general electronic construction. Buyer should verify footprint, package size, current requirements, and circuit specifications before substitution.
RF Boneyard Bench Notes
New unused distributor stock. Original Mouser labeled material visually inspected. Individual 0402 jumpers have not been electrically tested due to their miniature NOS SMD format.
