Vishay CRCW08050000Z0EA 0 Ohm 0805 SMD Thick Film Jumper Resistors 70pcs

Resistors • SKU RFB00431

$5.95

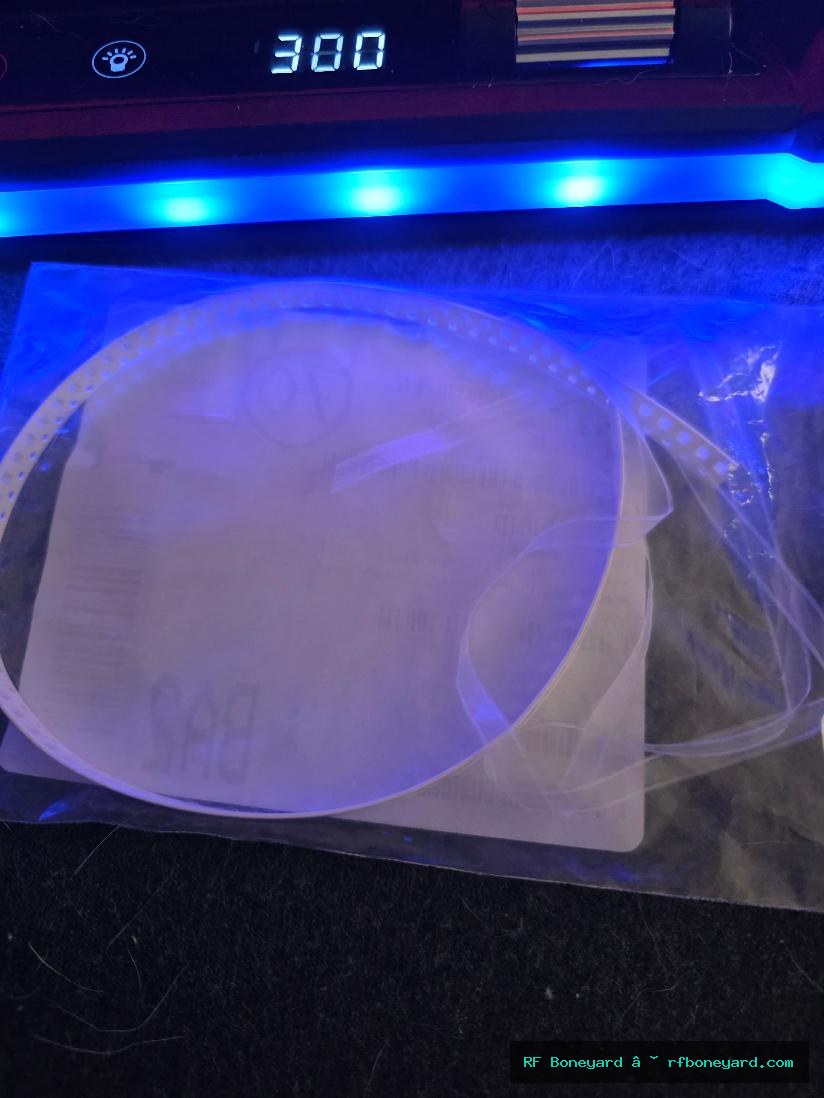

Lot of 70 Vishay CRCW08050000Z0EA zero-ohm thick-film surface-mount jumper resistors supplied in carrier tape from surplus distributor inventory. These components use the industry-standard 0805 SMD package, also known as 2012 metric, and are designed primarily to function as conductive PCB jumpers rather than as conventional resistance elements.

The original distributor packaging identifies Mouser part number 71-CRCW0805-0-E3 and Vishay manufacturer part CRCW08050000Z0EA. The inventory carries a 2021 date code and the components appear unused in their original carrier tape.

Although physically packaged like ordinary chip resistors, zero-ohm resistors perform a special function. Electrically they act as extremely low-resistance conductive links that allow circuit designers to bridge PCB traces, configure circuit options, select alternate signal paths, create production variations, establish test or isolation points, and implement board revisions without installing a conventional wire jumper.

Packaging a jumper in a standard resistor-style body allows automated pick-and-place machinery to install it with the same equipment and manufacturing process used for ordinary surface-mount resistors. This simple idea made zero-ohm resistors an important part of modern automated electronics production.

The CRCW08050000Z0EA belongs to Vishay's established D/CRCW e3 family of standard thick-film chip resistors and zero-ohm jumpers. The 0805 / 2012 metric format measures approximately 2.0mm x 1.25mm and remains one of the most common surface-mount package sizes used throughout electronic equipment.

Vishay identifies the D/CRCW e3 family as standard thick-film chip resistors intended for demanding automotive, industrial, and telecommunications applications. Zero-ohm versions of the series provide a compact surface-mount conductive jumper suitable for automated PCB assembly.

Zero-ohm SMD jumpers are found throughout commercial electronics, communications equipment, industrial control boards, automotive modules, test equipment, consumer electronics, radio equipment, and other densely populated circuit boards. They may serve as configuration links, routing jumpers, option-selection points, production-version selectors, or simple bridges between different PCB traces.

These parts are also useful for component-level repair and restoration. A technician may encounter a zero-ohm resistor where a manufacturer needed to cross a PCB trace, create a removable configuration point, select between circuit versions, or provide an easily assembled connection between two sections of a board. They can also be useful for repairing appropriate damaged PCB links when the original circuit calls for a zero-ohm jumper.

For prototype builders and experimenters, 0805 zero-ohm jumpers provide a professional method of creating selectable or configurable circuit paths while retaining a completely surface-mount PCB layout.

HISTORICAL:
Vishay Intertechnology was founded in 1962 by Dr. Felix Zandman and grew from specialized resistor technology into one of the world's major manufacturers of passive electronic components and discrete semiconductors. Over the following decades, Vishay expanded its component portfolio substantially and became deeply associated with resistor, capacitor, semiconductor, inductor, and related electronic-component technologies used throughout professional electronics.

Vishay's resistor business also incorporates technology and heritage from several historically important component manufacturers acquired during the company's expansion. The Vishay name today is associated with a broad range of precision, power, thick-film, thin-film, wirewound, and surface-mount resistor technologies used in everything from communications and industrial equipment to automotive electronics and test instrumentation.

The rise of the zero-ohm resistor is closely connected with one of the most important changes in electronics manufacturing: the transition from manually assembled through-hole circuit boards to automated surface-mount production.

Older electronic equipment commonly used short pieces of bare or insulated wire as PCB jumpers. These wire links were inexpensive and electrically simple, but they could require separate forming, insertion, or manual assembly operations.

As high-speed pick-and-place manufacturing became standard, manufacturers needed a way to install those same electrical links using automated component-placement equipment. The zero-ohm chip resistor provided an elegant solution. Electrically it behaved like a jumper wire, but mechanically it could be supplied on tape and placed by the same machines used for ordinary resistors.

Standardized SMD package sizes such as 0805 helped make this approach practical across enormous numbers of circuit-board designs. The resulting zero-ohm jumper became a small but important building block of modern electronics manufacturing.

The CRCW08050000Z0EA represents this evolution well. Although its electrical purpose is simply to provide a conductive connection, it is manufactured and packaged as a standardized surface-mount component that integrates easily into automated PCB production.

The Vishay D/CRCW e3 family remains represented in Vishay's current product catalog, including 0805 zero-ohm jumper configurations. This makes these parts useful not only as NOS repair inventory but also for modern prototyping, board repair, replacement work, and new electronic construction.

These components are NOS surplus distributor inventory and appear unused. They remain in carrier tape with their distributor identification. Original packaging may show normal warehouse storage, labeling, and handling wear.

Sale is for 70 pieces.
