Vishay Dale TNPW0603604RBEEA 604 Ohm 0.1% 0603 Precision Thin Film SMD Resistors 140 Pieces
$24.95

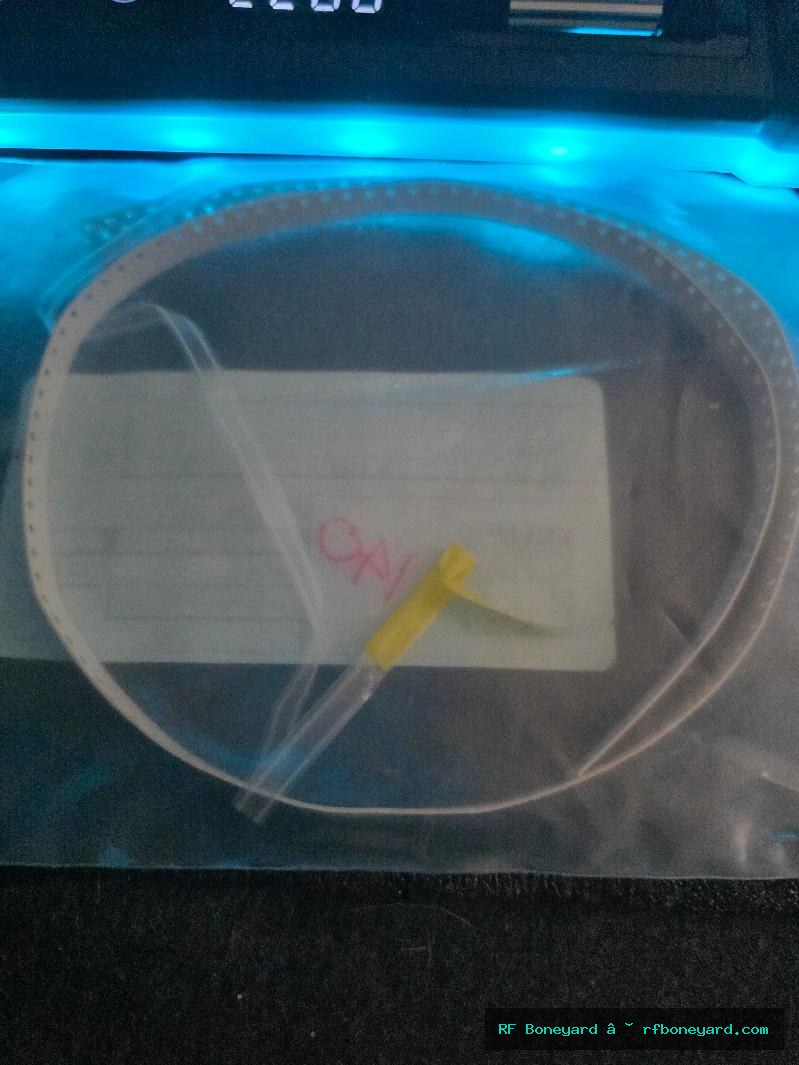

Lot of 140 Vishay Dale TNPW0603604RBEEA high-stability precision thin-film surface-mount resistors supplied in an original Digi-Key distributor-labeled packet. Each resistor provides a precise 604-ohm resistance value, tight ±0.1% tolerance, and a low ±25 ppm/°C temperature coefficient.
These resistors use the compact 0603-inch or 1608-metric SMD package. The original Digi-Key label identifies a 1/8-watt rating, while current technical data lists a maximum rating of 0.21 watt when the specified PCB layout and thermal conditions are maintained. Additional specifications include a 75V maximum operating-voltage rating and an operating temperature range of approximately -55°C to +155°C.
The TNPW e3 series features precision thin-film construction, high resistance stability, superior moisture resistance, verified sulfur resistance, and AEC-Q200 automotive qualification. Suitable for precision voltage dividers, amplifier feedback networks, instrumentation, medical electronics, test and measurement equipment, automotive systems, communications equipment, industrial controls, and component-level PCB repair.
Historical Note: Vishay Dale’s TNPW e3 series was developed for circuits requiring substantially greater accuracy, temperature stability, and long-term reliability than ordinary general-purpose thick-film resistors. The series is widely used in automotive, industrial, medical, telecommunications, and precision measurement equipment.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible with circuit boards using a 0603-inch or 1608-metric SMD footprint requiring a 604-ohm, ±0.1%, ±25 ppm/°C precision thin-film resistor. Confirm resistance, tolerance, power rating, voltage rating, temperature coefficient, and footprint before installation.
RF Boneyard Bench Notes

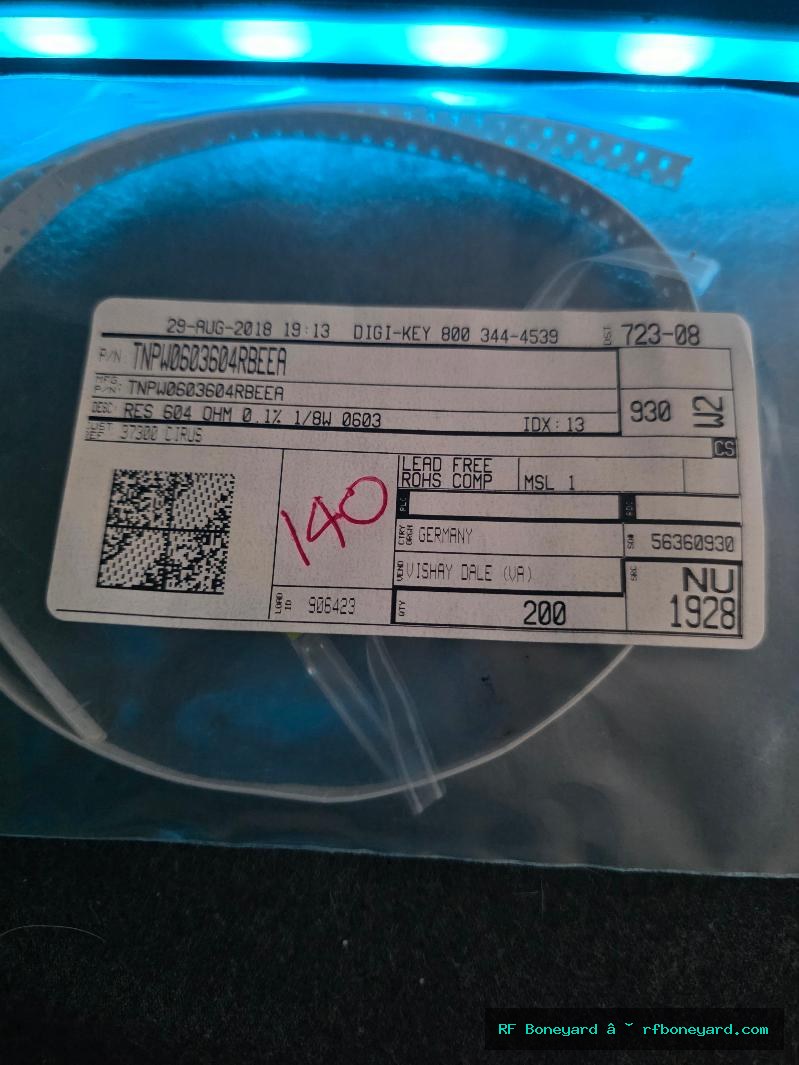

Original Digi-Key distributor-labeled packet visually inspected. Label identifies Vishay Dale part TNPW0603604RBEEA, 604-ohm resistance, ±0.1% tolerance, 1/8-watt rating, 0603 package, Germany country of origin, and an original quantity of 200 pieces. Handwritten remaining inventory count is 140 pieces. Components have not been individually resistance-tested due to quantity and miniature package size.
