Taiyo Yuden BKP1005EM121-T 120 Ohm 1.55A 0402 SMD Ferrite Beads 250 Pieces
$12.95

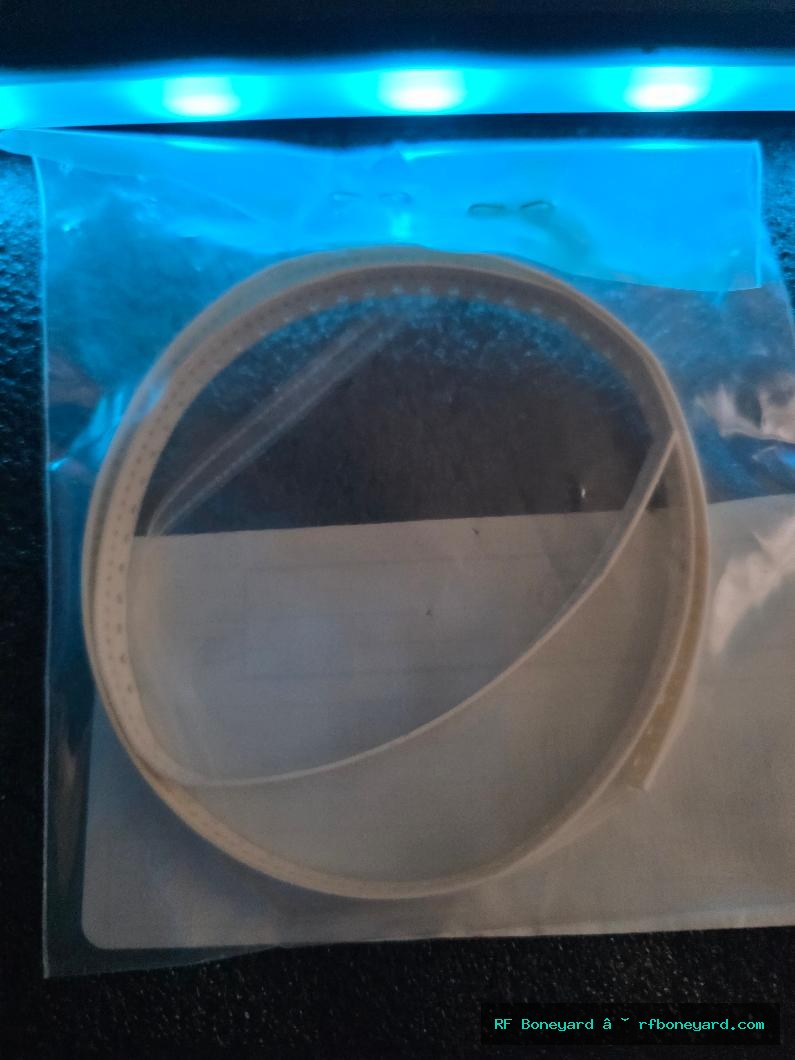

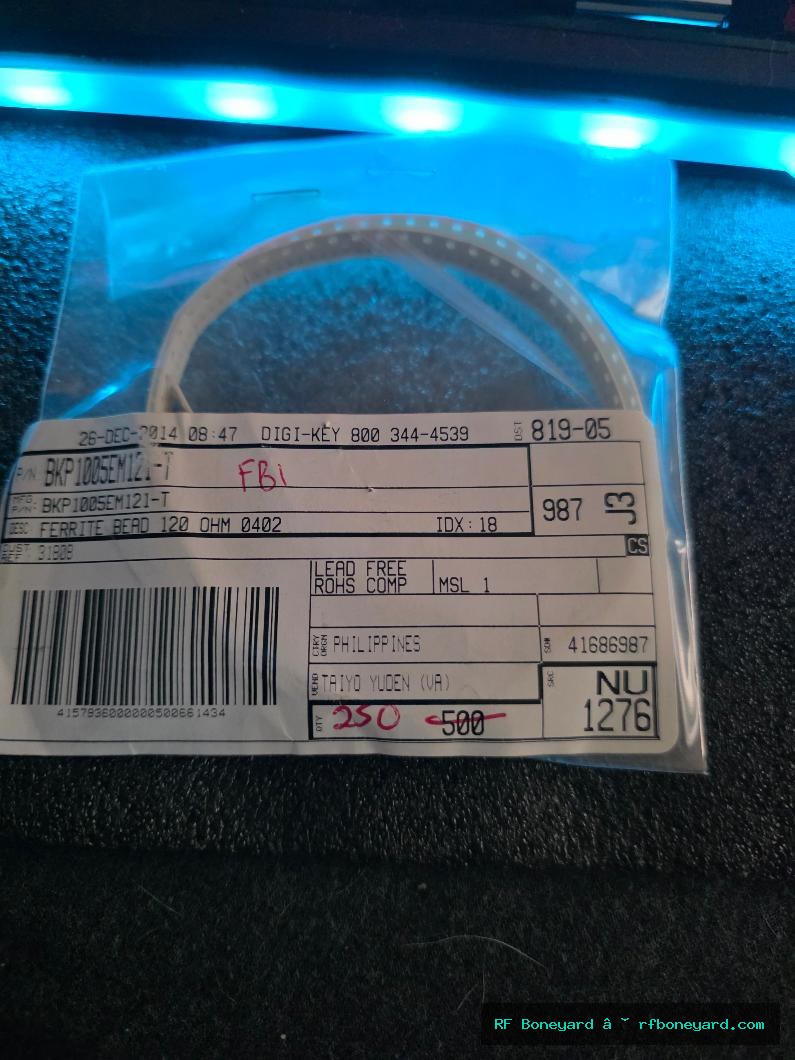

Lot of 250 genuine Taiyo Yuden BKP1005EM121-T multilayer SMD ferrite bead inductors supplied in an original Digi-Key distributor-labeled packet. These compact 0402 ferrite beads provide 120-ohm impedance at 100 MHz with ±25% tolerance and are designed for high-frequency noise suppression on DC power and signal lines.
Technical specifications include a 1.55-amp maximum rated current from -55°C to +85°C, 0.9-amp maximum rated current through +125°C, 85-milliohm maximum DC resistance, and a -55°C to +125°C operating range. The component measures approximately 1.0 × 0.5 × 0.5 mm and is suitable for reflow soldering. RoHS compliant, REACH compliant, halogen-free, and lead-free.
Typical applications include power-line noise filtering, USB and IEEE 1394 interface suppression, mobile electronics, communications equipment, computer hardware, battery-powered circuits, test equipment, industrial control boards, and component-level PCB repair.
Historical Note: Taiyo Yuden’s BKP series was developed as a low-DC-resistance multilayer ferrite bead family for high-current power-line noise suppression. The BKP1005EM121-T is now a phased-out legacy component, making original distributor-stock quantities useful for repair, restoration, and support of existing equipment designed around this exact part.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible with PCB layouts using a 0402-inch or 1005-metric SMD footprint requiring a 120-ohm-at-100-MHz ferrite bead rated for up to 1.55 amps. Confirm impedance curve, current rating, DC resistance, footprint, and temperature requirements before substitution.
RF Boneyard Bench Notes
Original Digi-Key distributor-labeled packet visually inspected. Components have not been individually electrically tested due to quantity and miniature package size.
