Limited Stock

Panasonic ERJ-2RKF3303X 330k? 1% 0402 SMD Thick Film Resistors - 50 Pieces

Resistors • SKU RFB00382

$7.95

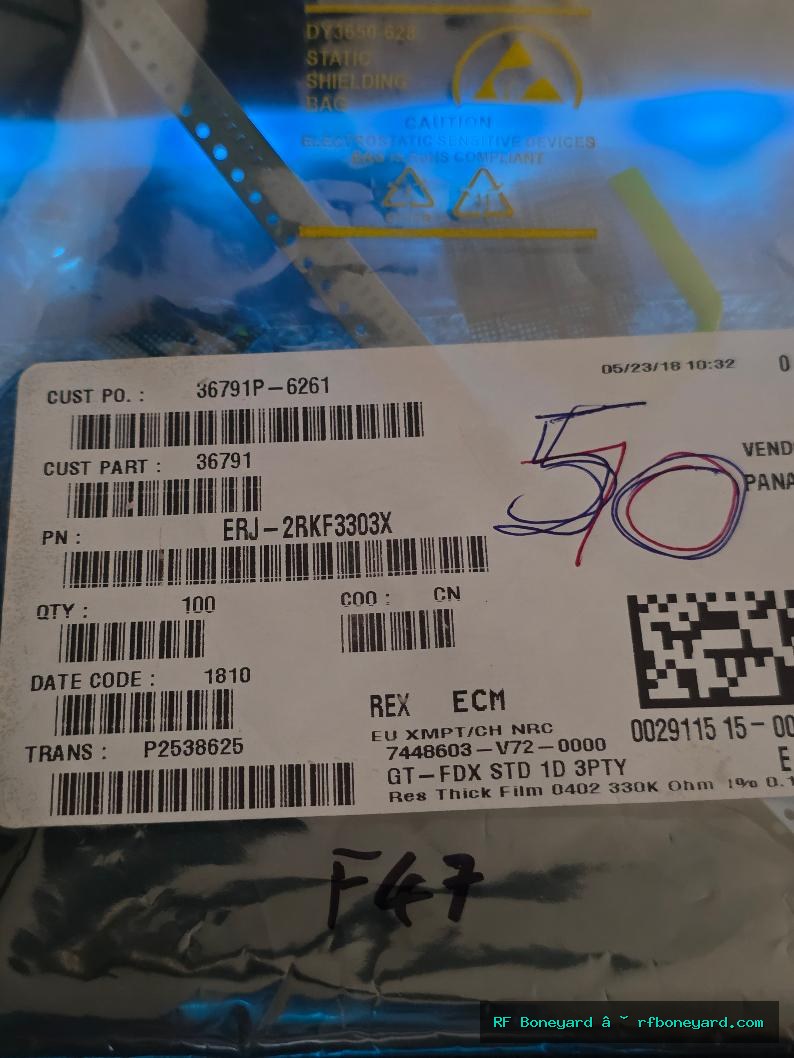

Original labeled distributor NOS packet containing 50 Panasonic ERJ-2RKF3303X precision thick-film surface-mount resistors. Each resistor has a resistance value of 330 k?, 1 percent tolerance, 0.1-watt / 1/10-watt power rating, and a temperature coefficient of plus or minus 100 ppm per degree C. These resistors use the compact 0402 imperial / 1005 metric SMD package, measuring approximately 1.00 x 0.50 mm with a maximum seated height of approximately 0.40 mm. The operating-temperature range is -55 C to +155 C. Suitable for voltage dividers, bias networks, sensing circuits, feedback networks, pull-up and pull-down applications, control boards, communications equipment, radio repair, audio electronics, test equipment, and general surface-mount circuit-board work. The ERJ-2RK series uses thick-film construction and is designed for automated placement and reflow soldering.

Historical Note: Precision chip resistors such as Panasonic’s ERJ series became important as electronics manufacturing shifted from larger leaded components toward compact, automated surface-mount circuit-board production. Their small footprint allows high component density while maintaining controlled resistance tolerance and dependable performance.
