KOA Speer RK73H1JTTD1004F 1M Ohm 1% 0603 SMD Thick Film Resistors - 60 Pieces
$7.95

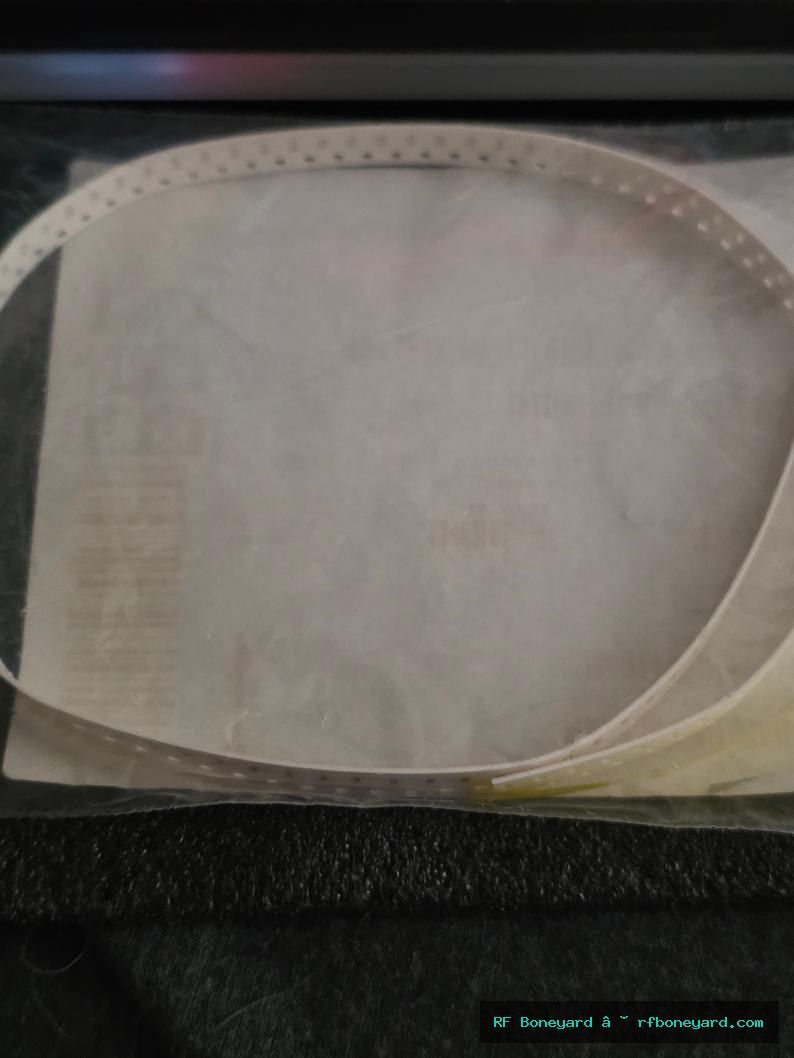

Original labeled distributor NOS packet containing 60 KOA Speer RK73H1JTTD1004F thick-film surface-mount resistors. Each resistor has a resistance value of 1 megohm, 1 percent tolerance, 0.1-watt / 1/10-watt power rating, and a temperature coefficient of plus or minus 100 ppm per degree C. These resistors use the compact 0603 imperial / 1608 metric SMD package, measuring approximately 1.60 x 0.80 mm with a maximum seated height of approximately 0.55 mm. Manufacturer specifications include a maximum working voltage of 75 volts and an operating-temperature range of -55 C to +155 C. Suitable for bias networks, voltage dividers, pull-up and pull-down circuits, sensing circuits, feedback networks, control boards, communications equipment, radio repair, test equipment, audio electronics, and general surface-mount circuit-board work. The RK73H series uses metal-glaze thick-film construction and is suitable for automated placement and reflow soldering. AEC-Q200 qualified and supplied with lead-free terminations.
Historical Note: KOA began in Tokyo, Japan, in 1940 as a manufacturer of fixed resistors. The company later developed an extensive range of compact surface-mount resistors as the electronics industry transitioned from through-hole assembly to automated, high-density circuit-board production.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible with electronic circuits requiring a 1 megohm, 1 percent, 0.1-watt resistor in a 0603 / 1608 metric surface-mount footprint. Buyer must verify resistance, tolerance, power rating, voltage rating, package dimensions, pad layout, and circuit suitability before installation.
RF Boneyard Bench Notes
Original labeled distributor NOS stock containing 60 pieces. Packaging and visible component tape were inspected; individual resistors were not electrically tested.
