Vishay Dale CRCW08050000Z0EA 0-Ohm 0805 SMD Jumper Resistors – 210 Pieces
$12.95

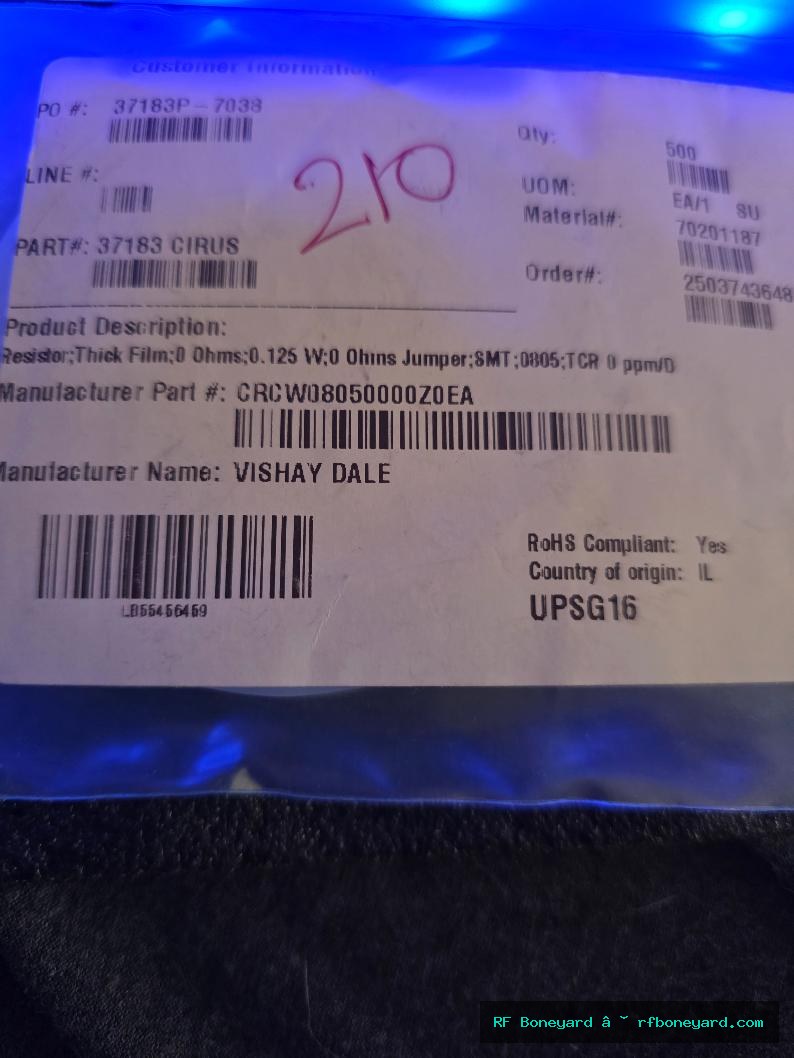

Original labeled distributor NOS packet containing a remaining quantity of approximately 210 Vishay Dale CRCW08050000Z0EA zero-ohm surface-mount jumper resistors. These components use the standard 0805 imperial / 2012 metric package and are designed as machine-placeable circuit links for PCB routing, configuration options, board revisions, test points, ground connections, and general surface-mount repair work. Manufacturer specifications identify a thick-film construction, 0? nominal value, 0.125-watt / 1/8-watt rating, maximum jumper resistance of approximately 20 m?, and an operating-temperature range of -55°C to +155°C. The 0805 body measures approximately 2.0 x 1.25 x 0.45 mm. The CRCW series uses a metal-glaze element on a ceramic substrate with protective overglaze and lead-free solder contacts over a nickel barrier layer. RoHS compliant and AEC-Q200 qualified. Suitable for automated reflow assembly and compatible lead-free or conventional soldering processes.
Historical Note: Vishay expanded its resistor business through the acquisition of Dale Electronics in 1985. Zero-ohm SMD jumpers such as the CRCW0805 became important during the electronics industry’s move toward automated circuit-board assembly because they could replace hand-installed wire links while being placed by the same machinery used for ordinary chip resistors.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible with circuit boards designed for a zero-ohm jumper or circuit link in an 0805 / 2012 metric surface-mount footprint. Useful for PCB configuration links, board-option selection, trace bridging, grounding links, routing changes, prototyping, telecommunications equipment, industrial controls, radios, test equipment, audio electronics, and general SMD repair. Buyer must verify package size, current requirements, pad layout, operating temperature, and circuit suitability before installation.
RF Boneyard Bench Notes

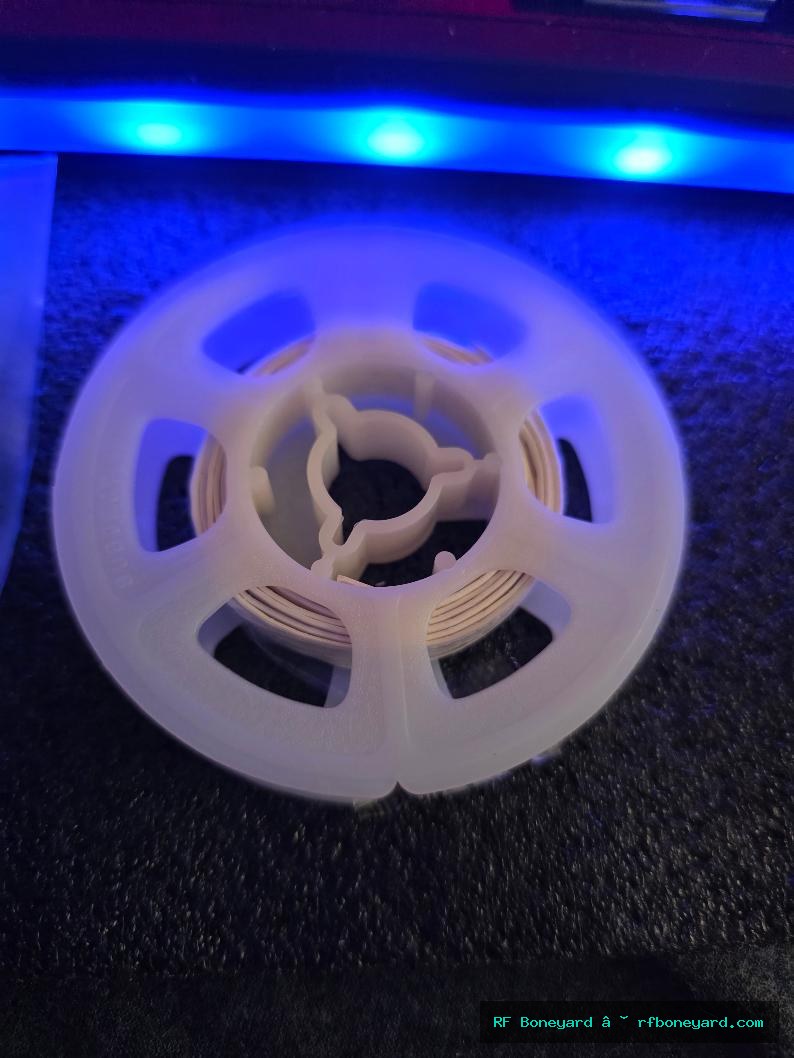

Original labeled distributor NOS stock. Remaining quantity is marked as approximately 210 pieces. Packaging and visible component tape were inspected; individual jumpers were not electrically tested or individually recounted.
