YAGEO RC1206JR-070RL 0 Ohm 1/4W 1206 SMD Jumper Resistors – 55 Pieces – Original Mouser Bag
$6.95

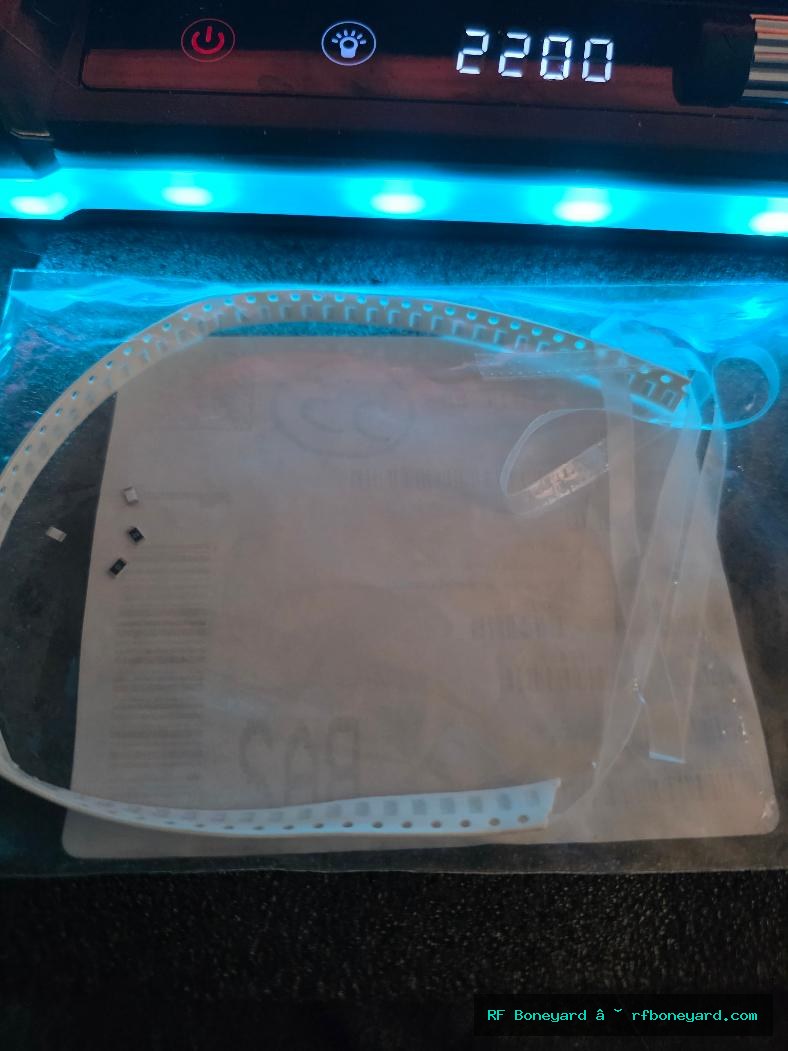

One original Mouser Electronics distributor bag containing 55 YAGEO RC1206JR-070RL zero-ohm SMD jumper resistors on factory carrier tape. This is one complete 55-piece lot sold exactly as pictured and will not be divided into smaller packs.

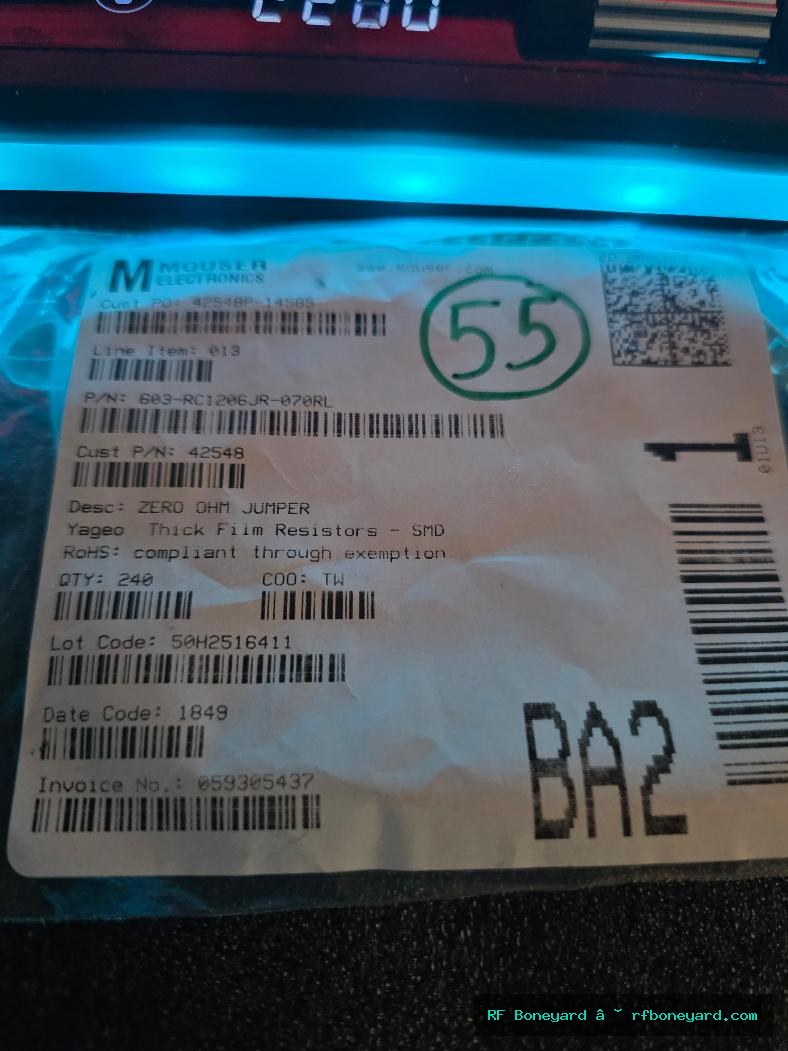

The original Mouser label identifies Mouser stock number 603-RC1206JR-070RL, manufacturer YAGEO, and description ZERO OHM JUMPER. The printed distributor label shows the original order quantity of 240 pieces; the bag is now clearly hand-marked with the remaining quantity of 55 pieces.
These are general-purpose thick-film zero-ohm jumper resistors designed for surface-mount PCB assembly. Electrical and physical specifications include 0-ohm nominal resistance, 5% classification, 250 mW or 1/4-watt power rating, 200-volt rating, 1206 EIA case size, and 3216 metric case size. Nominal dimensions are 3.10 mm long, 1.60 mm wide, and 0.55 mm high. Operating temperature range is -55°C to +155°C. Termination style is SMD/SMT, and the components are supplied on cut carrier tape. Country of origin is Taiwan. RoHS compliance is documented on the original Mouser distributor label.
Zero-ohm jumpers are used as conductive PCB links, configuration bridges, grounding links, option selectors, circuit-routing links, and assembly-friendly replacements for wire jumpers. They allow a conductive link to be installed using the same pick-and-place and reflow processes used for ordinary SMD resistors.
Historical Note: Zero-ohm resistors became an important production component because they allow PCB designers to cross circuit paths, select hardware configurations, and revise board routing without installing separate wire links by hand.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible with standard 1206 EIA and 3216 metric surface-mount footprints requiring a zero-ohm conductive jumper. Suitable for radio equipment, audio electronics, test equipment, industrial controls, computers, power supplies, consumer electronics, prototypes, and general PCB repair. Confirm footprint, voltage, current, and circuit requirements before installation.
RF Boneyard Bench Notes
Original Mouser Electronics distributor-labeled stock. Manufacturer, part number, Mouser stock number, component type, package size, country of origin, and RoHS status were verified from the original bag label. The remaining quantity is 55 pieces as marked on the bag. Components remain on factory carrier tape and were visually inspected. Not individually electrically tested.
