Panasonic ERJ-2RKF1872X 18.7k? 1% 0.1W 0402 Thick Film SMD Resistors – 90 Pieces
$8.95
Lot of 90 Panasonic ERJ-2RKF1872X surface-mount thick-film resistors supplied in original labeled tape packaging. These resistors have a resistance value of 18.7k?, ±1% tolerance, 0.1-watt power rating, and compact 0402 package size. Suitable for electronic repair, prototype construction, circuit-board production, automotive electronics, communications equipment, audio equipment, and general SMD applications.
Specifications:
Resistance: 18.7k?
Tolerance: ±1%
Power Rating: 0.1W / 1/10W
Technology: Thick Film
Package: 0402 / 1005 Metric
Dimensions: Approximately 1.0 × 0.5mm
Temperature Coefficient: ±100ppm/°C
Operating Temperature: -55°C to +155°C
Qualification: AEC-Q200
Termination Count: 2
Packaging: Cut tape
Compatible Radios / Boards
Suitable for circuit boards designed for 0402 / 1005 metric surface-mount resistors requiring an 18.7k? resistance value, ±1% tolerance, and a power rating up to 0.1W. Verify circuit specifications, footprint, voltage, power dissipation, and resistance requirements before installation.
RF Boneyard Bench Notes

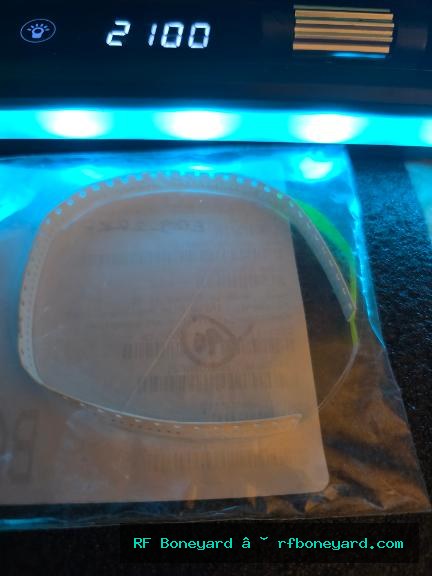

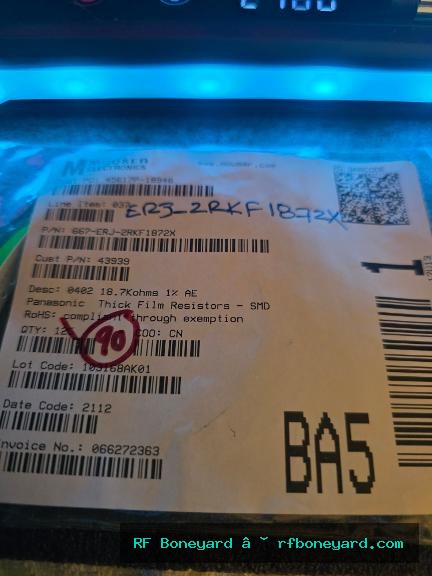

NOS components supplied in original labeled tape packaging. Quantity counted at 90 pieces. Components have not been individually resistance tested or removed from the carrier tape. Package label identifies Panasonic part number ERJ-2RKF1872X. Lifecycle status checked: Active/current production.
