95 PCS TDK C1608X5R1H104K080AA 0.1uF 50V 10% X5R 0603 SMD Ceramic Capacitors
Full Description & History

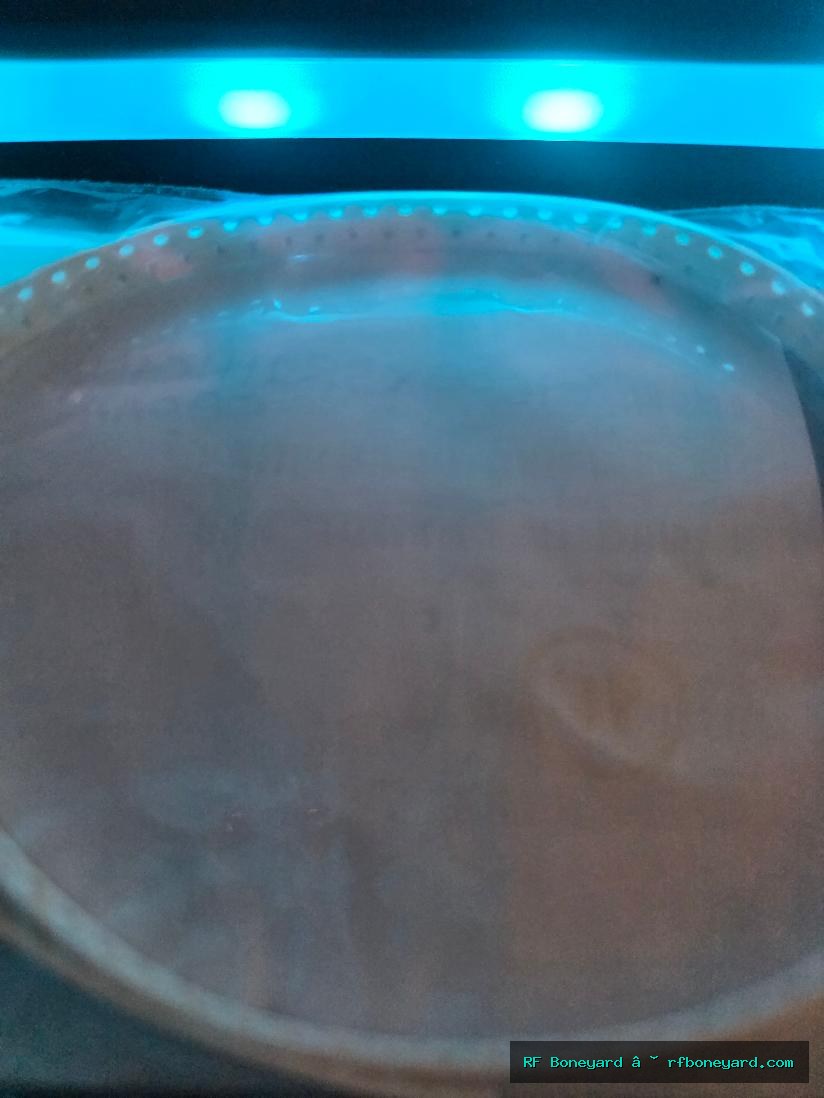

Lot of 95 TDK C Series multilayer ceramic chip capacitors supplied on cut tape in original Mouser-labeled packaging. Each capacitor is rated at 0.1uF / 100nF and 50V DC with ±10% tolerance, X5R dielectric, and a compact 0603 surface-mount package. Suitable for bypassing, decoupling, power-supply filtering, RF and radio circuit repair, control boards, audio electronics, test equipment, and general electronic restoration. Historical Note: TDK’s C Series helped support the electronics industry’s move toward smaller, densely populated circuit boards by providing dependable multilayer ceramic capacitance in compact automated-assembly packages.
Origin Tracker
NOS / New Old Stock
Unused new old stock from legacy inventory. Packaging, age, and cosmetic condition may vary.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible Radios / Boards
Suitable for circuits requiring a 0.1uF / 100nF 50V X5R ceramic capacitor in a 0603 / 1608 metric SMD footprint. Verify capacitance, voltage rating, dielectric, tolerance, package size, and circuit requirements before installation.
RF Boneyard Bench Notes
RF Boneyard Bench Notes

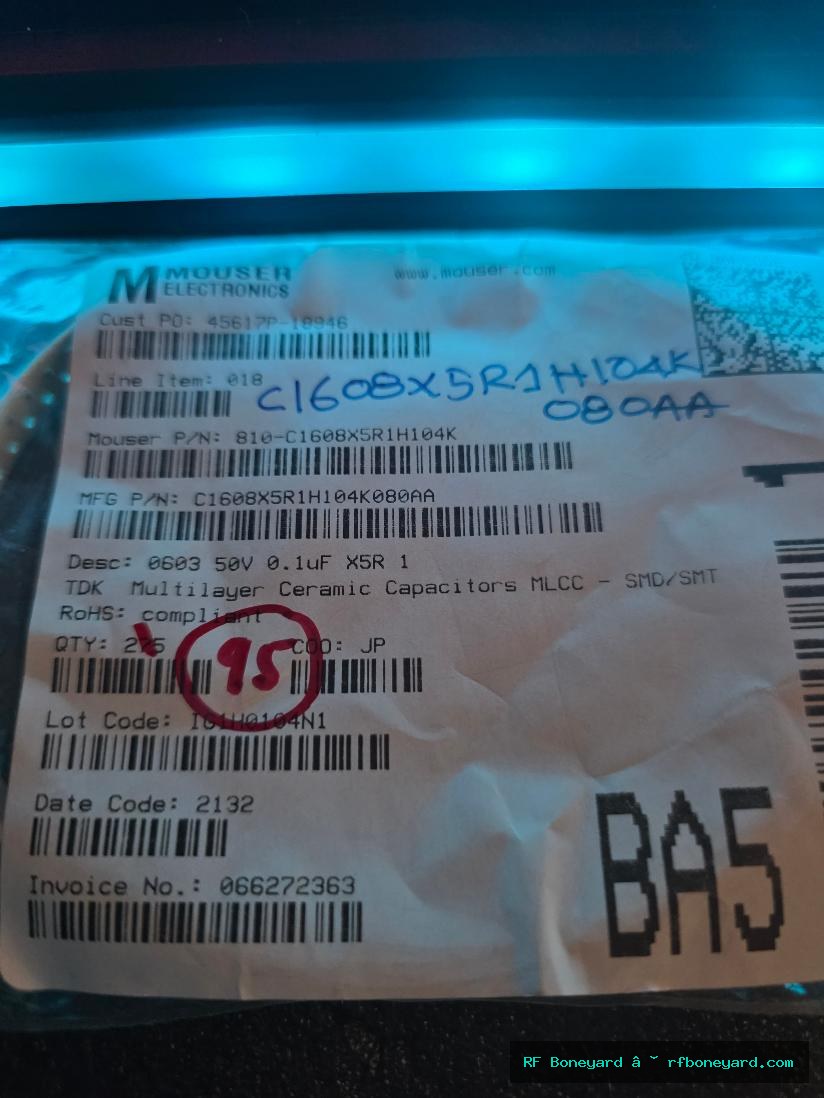

NOS components supplied on cut tape in original Mouser-labeled packaging. Quantity verified as 95 pieces. Not individually bench tested due to small SMD size. Manufacturer specifications: 0.1uF / 100nF capacitance, 50V DC rating, ±10% tolerance, X5R dielectric, 0603 / 1608 metric package, 1.60mm x 0.80mm x 0.80mm body size, 3% maximum dissipation factor, 5000M? minimum insulation resistance, -55°C to +85°C operating-temperature range, wave and reflow solder compatible, lead-free, and RoHS compliant. AEC-Q200: No. Lifecycle status checked: Active/current production.
