Bulkhead Straight RF Coaxial Connector Lot – 5 Pieces
$19.99

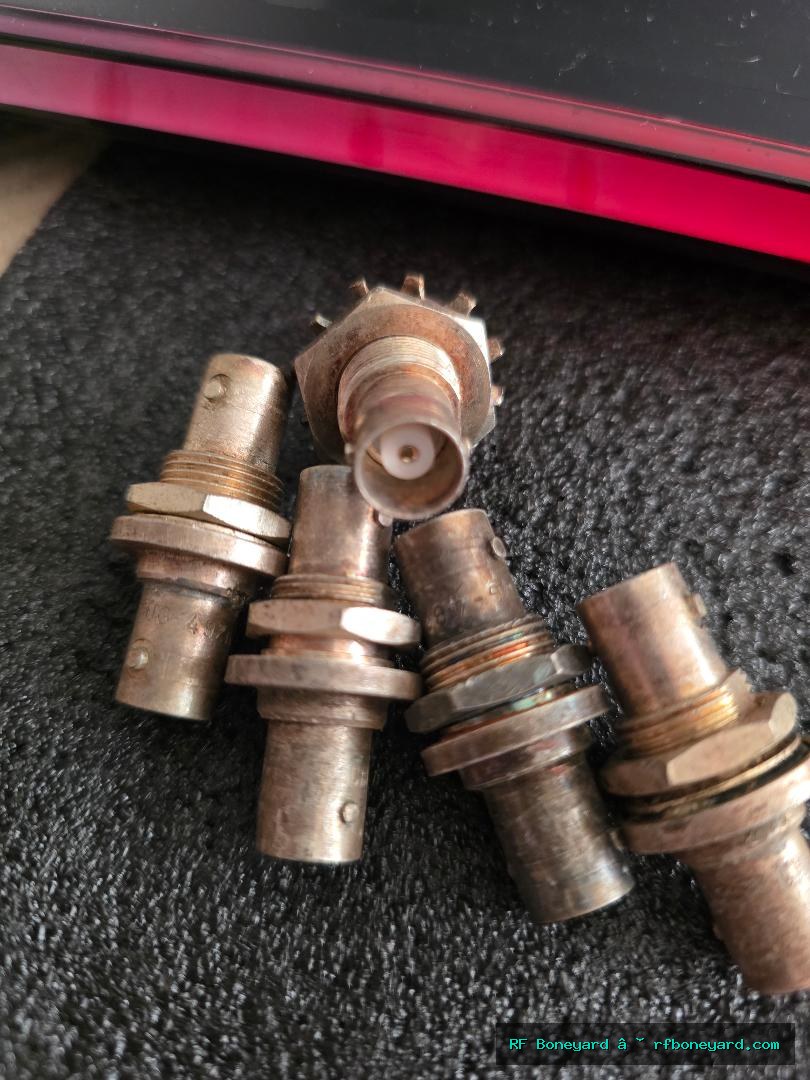

Lot of five straight bulkhead / panel-mount RF coaxial connectors from surplus RF inventory. These connectors have a threaded chassis-mount body with retaining nut and washer hardware, metal outer shell, white dielectric insulator, and a front female-style RF center contact visible in the photos. They are useful for RF chassis work, shielded enclosures, test fixtures, antenna panels, custom radio projects, bench adapters, restoration work, and experimental coaxial assemblies.
Manufacturer, exact connector series, impedance, frequency range, power rating, plating, and original equipment use are not confirmed. The lot is sold as photographed. Buyer must verify the mating connector type, panel-hole dimensions, mounting depth, termination arrangement, impedance, and electrical requirements before purchase or installation.
Bulkhead RF connectors were commonly used to bring coaxial signals through radio chassis, instrument panels, shielded cabinets, antenna feedthrough panels, and laboratory fixtures. Surplus examples are especially useful for restorers and builders who need durable threaded panel-mount RF hardware.
Origin Tracker
Bench Stock
Pulled from RF Boneyard bench/service stock for practical repair and restoration use.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Suitable for RF chassis, shielded enclosures, antenna panels, test fixtures, radio projects, custom coax assemblies, laboratory equipment, vintage electronics restoration, and bench hardware where the buyer verifies exact mating connector series, connector gender, panel-hole size, mounting depth, center-contact configuration, termination method, impedance, and frequency requirements. Not a universal connector substitution. Buyer must confirm fit and electrical requirements before installation.
RF Boneyard Bench Notes
Connector Identification:
Manufacturer: Unknown
Part Number: Not confirmed
Connector Type: Straight bulkhead / panel-mount RF coaxial connector
Configuration: Straight threaded chassis-mount body
Mounting Style: Threaded bulkhead / panel mount with retaining nut and washer hardware
Front Interface: Female-style RF center contact visible in photographed sample
Center Contact: Female-style center contact visible
Outer Conductor / Ground: Metal body, threaded bulkhead shell, retaining nut, and outer RF shell
Insulator: White dielectric insulator visible
Exact RF Series: Not verified
Impedance: Not verified
Frequency Range: Not verified
VSWR: Not verified
Power Rating: Not verified
Termination Style: Rear termination configuration not verified from photos
Quantity Tested: Random physical inspection only
Physical Inspection:
Random visual inspection completed on photographed lot.
Metal bodies, threaded bulkhead sections, retaining nuts, washers, and white dielectric insulators are present.
Front center contacts appear present in photographed sample.
Vintage surface oxidation / storage wear is visible on some metal bodies.
No obvious cracked dielectric or missing bulkhead hardware observed in photographed pieces.
Continuity Test:
Not individually continuity tested.
Front center contact to rear center termination: Not tested.
Outer shell to threaded bulkhead body: Not tested.
Front center contact to outer shell: Not tested; buyer should verify open / no-short condition before installation.
Bench Evaluation:
PASS - Random physical inspection completed.
PASS - Bulkhead mounting hardware is present.
PASS - Front center contacts and visible dielectric appear present in photographed sample.
PASS - Sold as vintage surplus RF hardware; buyer must verify exact connector series, mating interface, impedance, dimensions, and termination requirements before use.
