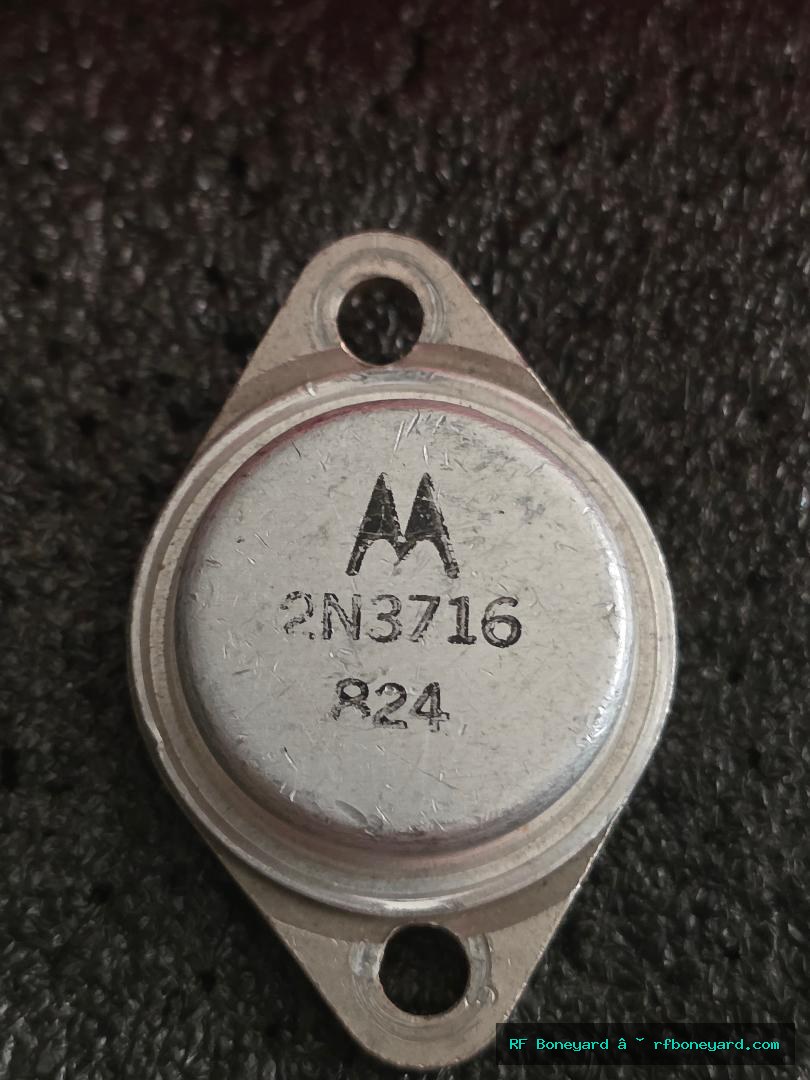

Motorola 2N3716 NPN Silicon Power Transistor TO-3 Metal Can Bench Tested
$19.95
Original Motorola 2N3716 NPN silicon power transistor housed in the rugged TO-3 metal can package. This vintage Motorola semiconductor has been individually bench tested by RF Boneyard™ and verified for gain, junction integrity, saturation voltage, and collector leakage performance.
The 2N3716 was commonly used in industrial control systems, power supply assemblies, amplifier circuits, motor drive equipment, and other applications requiring a reliable power transistor. Testing confirmed healthy transistor action with good gain characteristics, low saturation voltage, and no measurable collector leakage.
A great addition for vintage electronics restoration, repair inventory, engineering projects, semiconductor collections, and replacement applications where compatibility has been confirmed by the buyer.
Origin Tracker
Obsolete Stock
Legacy or discontinued stock no longer in normal production flow. Future supply may be limited.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Linear Power Supplies
Industrial Control Equipment
Power Regulation Circuits
Audio Amplifier Service
Motor Drive Equipment
Vintage Electronic Restoration
General Purpose Power Switching Applications
Buyer must verify compatibility before installation.
RF Boneyard Bench Notes
| Metric | Result |
| -------------------------- | ------------------------ |
| Device Type | NPN Silicon BJT |
| Pinout | Red-C, Green-E, Blue-B |
| hFE | 27 @ Ic = 5.01mA |
| Vbe @ Ib = 1.00mA | 0.528V |
| Vbe @ Ib = 5.00mA | 0.592V |
| VceSat | 0.043V |
| VceSat Test Conditions | Ic = 5.00mA, Ib = 1.00mA |
| Collector Leakage (IcLeak) | 0.000mA |
Gain Test: PASS
Junction Test: PASS
Leakage Test: PASS
Saturation Test: PASS
Shorted Junctions:
NONE DETECTED
Open Junctions:
NONE DETECTED
