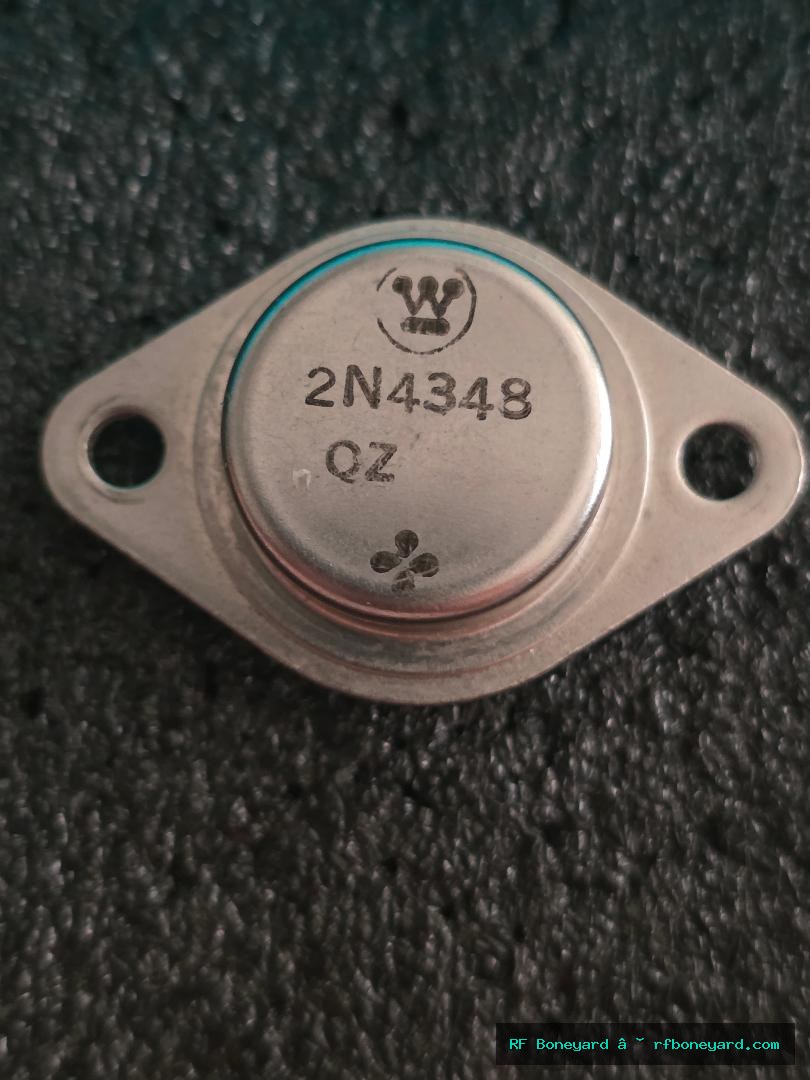

Westinghouse 2N4348 NPN Silicon Power Transistor TO-3 Metal Can Bench Tested
$19.95
Original Westinghouse 2N4348 NPN silicon power transistor housed in the classic TO-3 metal can package. This vintage USA-manufactured semiconductor features the recognizable Westinghouse "W" logo and has been individually bench tested by RF Boneyard™.
The 2N4348 was commonly used in power supply assemblies, industrial control equipment, amplifier circuits, laboratory equipment, and other applications requiring a rugged TO-3 power transistor. Bench testing verified gain, junction integrity, saturation voltage, and collector leakage performance.
A great candidate for vintage electronics restoration, repair inventory, engineering evaluation, semiconductor collections, and replacement applications where compatibility has been confirmed by the buyer.
Origin Tracker
Obsolete Stock
Legacy or discontinued stock no longer in normal production flow. Future supply may be limited.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Vintage Audio Amplifiers
Linear Power Supplies
Industrial Electronics
Power Regulation Circuits
Motor Drive Equipment
Electronic Restoration Projects
General Purpose Power Amplification Applications
Buyer must verify compatibility before installation.
RF Boneyard Bench Notes
| Metric | Result |
| -------------------------- | ------------------------ |
| Device Type | NPN Silicon BJT |
| Pinout | Red-B, Green-C, Blue-E |
| hFE | 16 @ Ic = 5.00mA |
| Vbe @ Ib = 1.00mA | 0.466V |
| Vbe @ Ib = 5.00mA | 0.533V |
| VceSat | 0.040V |
| VceSat Test Conditions | Ic = 5.00mA, Ib = 1.00mA |
| Collector Leakage (IcLeak) | 0.000mA |
Gain Test: PASS
Junction Test: PASS
Leakage Test: PASS
Saturation Test: PASS
Shorted Junctions:
NONE DETECTED
Open Junctions:
NONE DETECTED
