Motorola 2N3767 Matched Pair NPN Silicon Power Transistors
$49.95

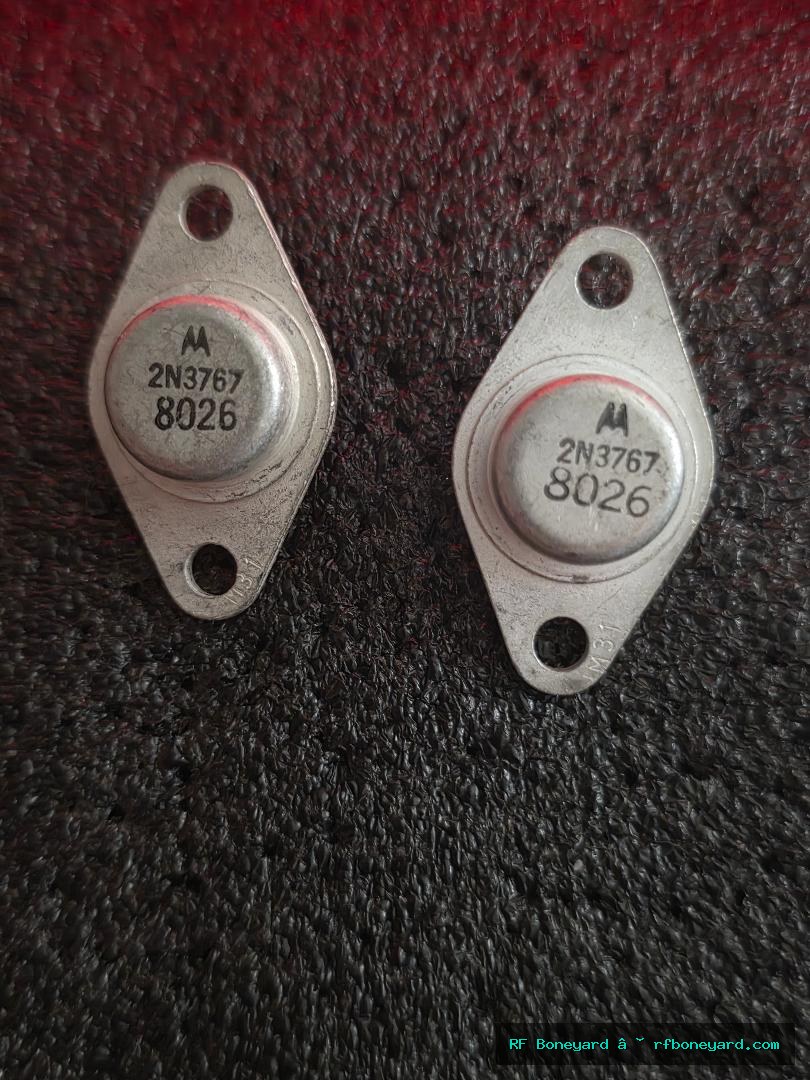

Original Motorola 2N3767 NPN silicon power transistor matched pair in TO-3 metal can package.
Both transistors carry matching Motorola markings and matching 8026 date codes. Devices were individually bench tested and documented for gain, junction characteristics, saturation voltage, and leakage performance.
Ideal for restoration projects requiring a closely matched vintage transistor pair.
Origin Tracker
Obsolete Stock
Legacy or discontinued stock no longer in normal production flow. Future supply may be limited.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Linear Power Supplies
Industrial Equipment
Vintage Amplifiers
Motor Control Equipment
Power Regulation Circuits
Electronic Restoration Projects
BuyPinout:
Red-C
Green-B
Blue-E
hFE = 111 @ Ic = 5.00mA
Vbe = 0.616V @ Ib = 1.00mA
Vbe = 0.674V @ Ib = 5.00mA
VceSat = 0.023V
Test Conditions:
Ic = 5.00mA
Ib = 1.00mA
IcLeak = 0.000mAer responsible for compatibility verification.
Pinout:
Red-E
Green-C
Blue-B
hFE = 123 @ Ic = 4.99mA
Vbe = 0.612V @ Ib = 1.00mA
Vbe = 0.676V @ Ib = 5.00mA
VceSat = 0.022V
Test Conditions:
Ic = 5.00mA
Ib = 1.00mA
IcLeak = 0.000mA
RF Boneyard Bench Notes
Device Type:
NPN Silicon BJT
Manufacturer:
Motorola Semiconductor
Part Number:
2N3767
Package:
TO-3 Metal Can
Date Codes:
8026 / 8026
