Hammond A0-503-53 Vintage 0.022uF 400V Axial Capacitor

Original vintage Hammond A0-503-53 axial-leaded capacitor with a nominal capacitance of 0.022uF (22nF), ±10% tolerance, and a rated working voltage of 400 VDC.

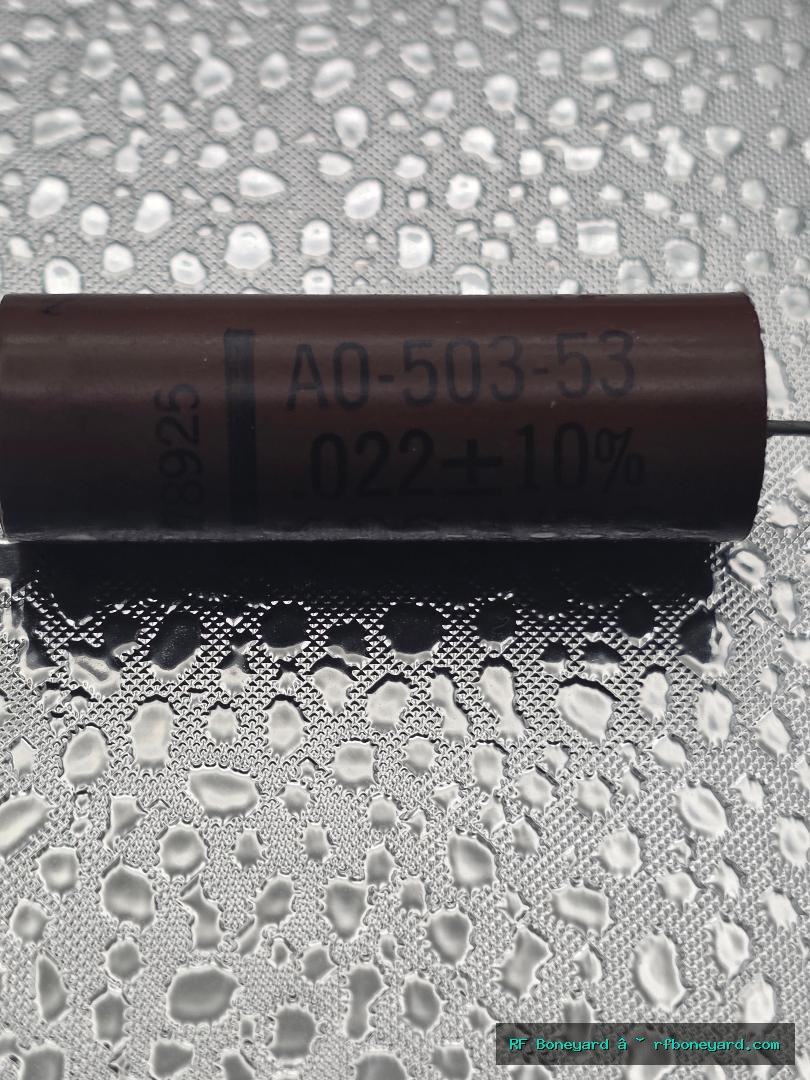

This vintage component features a brown cylindrical body with axial wire leads and original printed identification markings. The body identifies part number A0-503-53, capacitance .022uF, tolerance ±10%, and voltage rating 400 VDC. An additional identification marking of 178925 is visible.

The capacitor was tested and measured at 21.9nF against its nominal 22nF specification. This represents a deviation of approximately -0.45%, comfortably within the original manufacturer's ±10% tolerance.

The component retains its original vintage construction and identification markings. Its axial-leaded design is characteristic of electronic components commonly used in older audio equipment, analog electronic circuits, and traditional electronic assemblies.

The original dielectric construction has not been independently verified. Although the capacitance measurement is within specification, high-voltage leakage and insulation resistance testing have not been performed.

This original vintage capacitor is suitable for collectors, electronic restoration technicians, and repair applications requiring the appropriate electrical specifications and physical configuration.

LIFECYCLE: OBSOLETE

HISTORICAL BACKGROUND:
Hammond is a historically significant American name associated with electrical engineering, electromechanical technology, and electronic equipment manufacturing during the 20th century.

The company's history is closely associated with American inventor Laurens Hammond, whose engineering work included synchronous electric motors, precision mechanisms, and electrical devices.

Laurens Hammond established the Hammond Clock Company in 1928, applying synchronous motor technology to the development of electric clocks and related precision equipment.

During subsequent decades, Hammond's engineering activities expanded into sophisticated electromechanical and electronic systems. These developments required numerous passive electronic components, including resistors, capacitors, transformers, and inductors.

Capacitors became fundamental components in the development of modern electronic equipment. They were used for signal coupling, frequency filtering, tone control, timing networks, power supply filtering, and many other electrical functions.

During the middle decades of the 20th century, axial-leaded capacitors were widely employed in radios, audio amplifiers, television receivers, electronic instruments, laboratory equipment, and industrial control systems.

The axial construction allowed technicians and manufacturers to install components in point-to-point wiring assemblies, terminal strips, and early printed circuit boards.

Capacitors manufactured during this period employed several dielectric technologies, including paper, foil, and later plastic film materials. The dielectric influenced the electrical behavior, stability, physical dimensions, and long-term reliability of each component.

Capacitors rated at several hundred volts were particularly common in equipment using vacuum tubes and other circuits operating at elevated DC voltages.

The nominal capacitance value of 0.022uF became widely used in analog electronics. Components of this value could be found in signal coupling circuits, filtering networks, tone-shaping applications, and other frequency-dependent electronic systems.

As electronic manufacturing advanced, improvements in capacitor materials and production methods led to smaller, more stable, and more reliable components.

The introduction of improved plastic film dielectric materials helped replace many earlier paper-based capacitor constructions. Modern surface mount technology later reduced the need for traditional axial-leaded components in newly manufactured electronic equipment.

Vintage electronic components remain important to collectors, historians, and restoration technicians because they preserve evidence of earlier manufacturing techniques, component identification systems, and electrical engineering practices.

Original components with legible markings are particularly useful when documenting historical electronic assemblies or identifying replacement requirements.

The Hammond A0-503-53 retains its original identification markings, nominal capacitance, tolerance, and voltage information. The exact original equipment application and manufacturing subcontractor have not been independently established.

This surviving capacitor has been measured at 21.9nF, close to its original nominal capacitance of 22nF and within the marked ±10% tolerance.

Although the capacitance measurement indicates that its measured value remains within specification, vintage capacitors can develop insulation leakage or dielectric deterioration with age.

A satisfactory capacitance reading alone does not establish that an older component remains suitable for operation at its original rated voltage.

Proper testing and evaluation are recommended before installing vintage capacitors in high-voltage electronic circuits.
