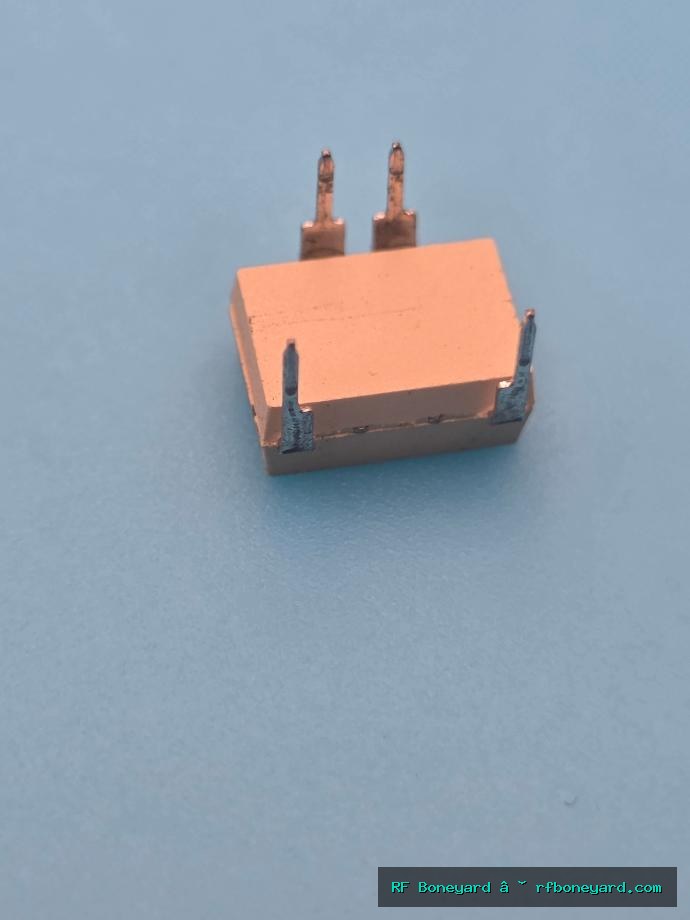

International Rectifier PVD1354 100V 500mA Photovoltaic Solid State Relay
Full Description & History
Vintage International Rectifier PVD1354 BOSFET photovoltaic solid-state relay. Single-pole normally-open contact configuration, rated for 0-100V DC switching and 500mA load current. Modified DIP-8 package with four active leads. Suitable for compatible electronic switching, instrumentation, control circuitry, and legacy equipment restoration.
LIFECYCLE: OBSOLETE
HISTORICAL BACKGROUND:
International Rectifier developed the PVD series of photovoltaic DC relays as compact, contactless alternatives to electromechanical relays. The original PVD1354 uses a photovoltaic generator to control a MOSFET output switch, providing electrically isolated, bounce-free switching. The original PVD1354 is now obsolete, with later PVD13-series derivatives continuing the technology.
Origin Tracker
Obsolete Stock
Legacy or discontinued stock no longer in normal production flow. Future supply may be limited.
Pipeline quantities are informational and may change after arrival, inspection, sorting, testing, or donor teardown.
Compatible Radios / Boards
Compatible Radios / Boards
Equipment designed for PVD1354 or a verified electrically compatible alternative. No specific arcade machine compatibility confirmed.
RF Boneyard Bench Notes
RF Boneyard Bench Notes
Not tested; no functional measurements supplied.
