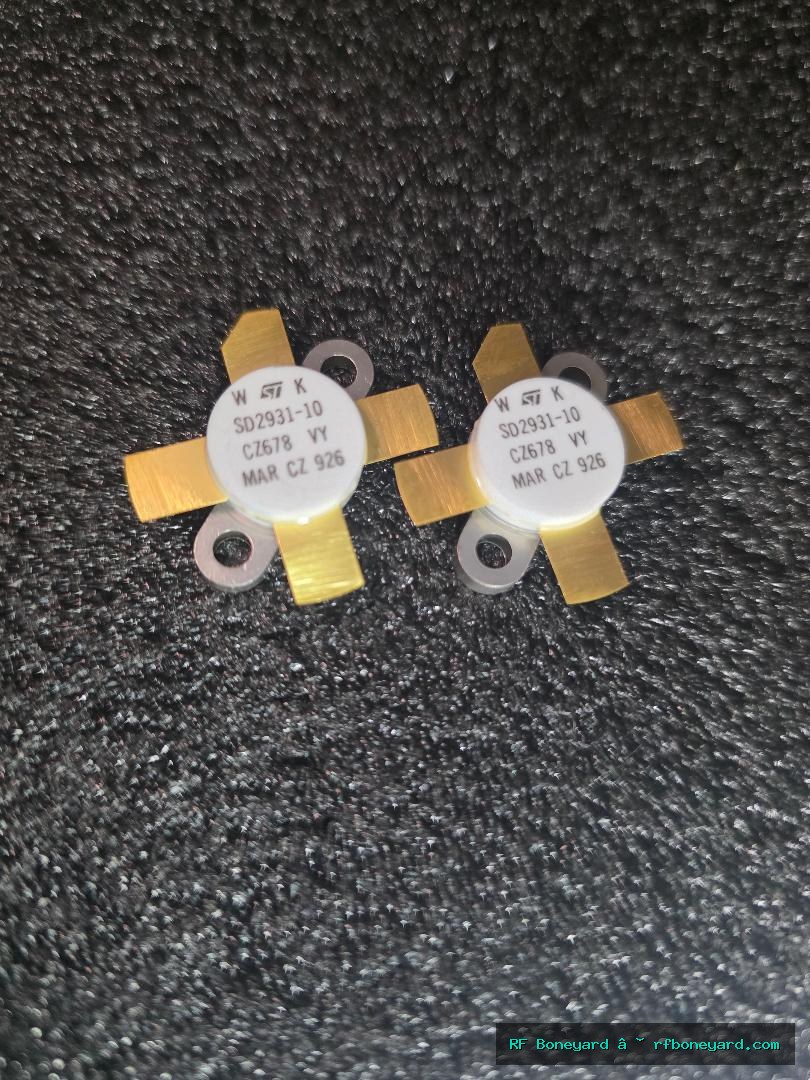

SD2931-10 RF Power MOSFET Pair – Tested Close-Reading Pair

RF Boneyard Bench Notes

SD2931-10 RF Power MOSFET Pair — Bench Metrics

Tester Identification: MOSFET
Device Type: RF Power MOSFET
Package: Flange-mount RF transistor package

Metric Device A Device B

Vgs(on) / Threshold 2.345 V 2.348 V
Ip / Drain Current 5.04 mA 5.00 mA
Gate Leakage / Ig 1 µA 2 µA
Vgs(off) 1.503 V 1.518 V
Ip at Vgs(off) 4.9 µA 5.1 µA
gm / Transconductance Transisistor 29.3 mA/V 30.9 mA/V
Ip range during gm test 3.0–5.0 mA 3.0–5.0 mA
Rds(on) 1.0 ? 1.0 ?
Ip during Rds(on) test 5.0 mA 5.0 mA
Vgs during Rds(on) test 8.0 V 8.0 V
Body Diode Vf 0.59 V 0.58
